    Double Wall Ripple Coffee Cup Manufacturing Machine With PLC Control

    Ask Lasest Price
    Brand Name : Fect
    Model Number : PFD-16
    Certification : CE
    Price : FOB US $13980.00 - 15000.00 per Set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 90 sets per month
    Delivery Time : within 50 working days after payment confirmed
    • Product Details
    • Company Profile

    Double Wall Ripple Coffee Cup Manufacturing Machine With PLC Control

    Double Wall Ripple Coffee Paper Cup Making Machine Paper Cup Machine Manufacturers


    Paper Cup Making Machine


    PFD-16 automatic paper cup machine is an ideal equipment for both single-layer PE paper and double-layer PE paper. More importantly, it can produce cold drink cups as well as hot drink cups. It is an ideal equipment for plastic paper and can produce paper cups of different sizes. Powerful function, three paper feeding, the three feeding process can adjust the paper well, avoiding the irregular phenomenon in the origami process. Irregularities in the origami process. And with ultrasonic sealing, and automatic cup closing device.


    This machine adopts PLC control, which is more intelligent and precise, and the operation is easier. At the same time, the cooling device of the machine can keep the machine at a proper temperature when working. At the same time, the machine is equipped with an automatic lubrication system, and the machine is driven by a wheel-connected pulley, which saves manual operation time and minimizes the wear and tear of the machine. There are comprehensive technical improvements in stability and efficiency. Ideal for making (coffee, tea, ice cream, juice, beer, soup, food, snacks, etc.) hot and cold beverage paper cups.


    Technical Specification of paper cup making machine


    TypePFD-16
    Cup size4-16 oz (other customized sizem Mould changeable)
    Production capacity65-85 pcs/min
    Power source3P 220V/380V 50HZ(please inform us your power in advance)
    Suitable Material150-350g/m2 (Single or Double PE-coated / laminated paper)
    Total Power4 KW
    Air Requirement0.4-0.5 m3/min
    Weight1700KG
    Machine size2000 x 1230 x 1700 mm
    H.S code for customs8441309000
    Making Double PE coated paper cups, need to buy an air compressor
    Application of paper cup making machine

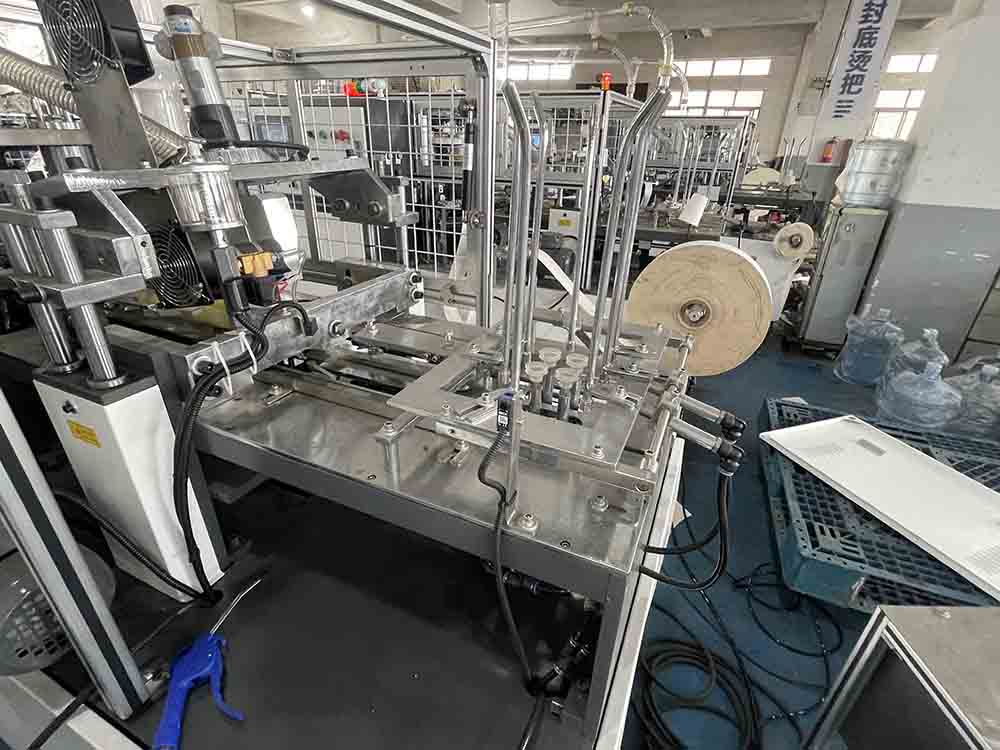

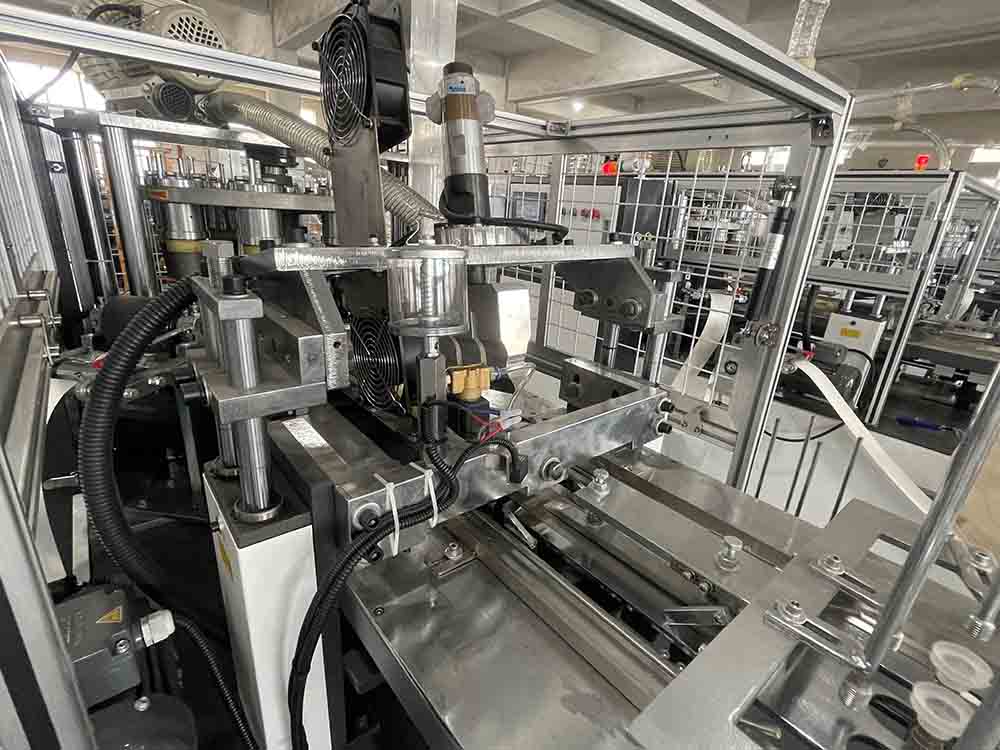

    Details of paper cup making machine
    FAQ of paper cup making machine

    Q1: Are you a manufacturer or a trading company?
    A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
    Q2: Do you have relevant certificates?
    A: Yes, so far we have CE, ISO, etc. If you need, we can also issue CO, Form E, etc.
    Q3:: Do you check finished machines?
    A: Yes, we have QC department, they will check each machine before packing and provide test video to make sure there is no problem with the machine.
    Q4: What payment methods do you accept?
    A: TT (Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
    Q5 : After I place an order, when can I ship the machine?
    A: It depends on the model and quantity of the machine, some in-stock machines can be shipped within 3 working days after payment, other customized machines start production after the deposit arrives, please contact our staff for details.
    Q6: What about warranty and after-sales service?
    A: Our machines come with a two-year warranty and lifetime technical support. Help is always just a phone call or email away, then we can provide the right solution within 8 hours after analyzing and estimating the problem. Remote training and on-site service are available
