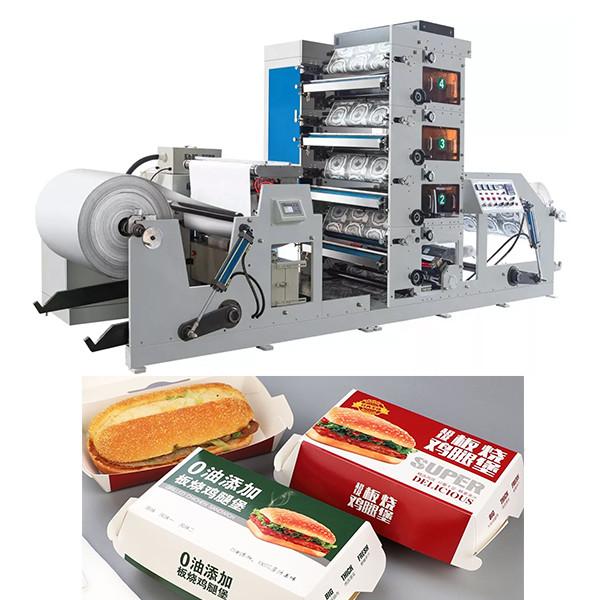

850mm 60m/min kraft paper carton box flexo printing machine 6 color
printing machine
850mm 60m/min kraft paper carton box flexo printing machine 6 color
printing machine is very suitable for standardization. Flexo
printing machine through the many plates holes in cylinder to
convey the ink, once you choose the right roller in the printing
process, the color change little, to some extent,can reduce the
dependence on operator experience. And through this ink
transmission, color is well-distributed.
Technical parameters
| Printing speed | 60m-120m/min |
| Printing color | 4 colors (1/2/3/4/5/6/7/8 color for option) |
| Print max width | 850mm |
| Unwind roll width | 860mm |
| Unwind roll diameter | 1300mm |
| Rewind roll max diameter | 1300mm |
| Printing length | 175-370mm |
| Registering accuracy | ±0.15mm |
| Voltage | 36kw |
| Air press | 0.6MP |
| Weight | 4500 kg |
| Dimension | 4500*1800*2250 mm |
Features
1.Adopt high quality ceramic anilox cylinder to transfer the ink.
2.The printing unit can register in 360degress;each printing unit
can mesh roller and improve the printing efficiency.
3.Each printing unit equips with IR dryer.
4.Unwinding is controlled by magnetic powder brake and rewinding is
controlled by magnetic inverter motor .
5.Unwinding adopts auto tension controller.
6.Each printing unit adopts 360° adjustment, it can independently
gear and loosen,so other printing units can continue to print.
7.Equipped with web guide for tracking.
8.The ink rollers will be separated from the printing rollers,and
keep running when the machine stops.
9.The main motor is adopted the import stepless, regulation of
frequency conversion.
10.The machine can finish material-feeding, printing,rewinding in a
lump.It is an ideal machine for printing note and top-grade paper
cup.
Standard Configuration
1) 2 sets Printing roller
2) 2 sets ceramic anilox roller (made in shanghai)
3) 5 group * 3 sets printing rollers = 15 pcs (buyer offer
dimension)
4) Transducer(2 pcs)
5) One unwinding tension controller
6) One rewinding tension controller
7) 1 pcsElectromagnetism valve
8) Main Motor
9) Button
10) All low-tension electrical
11) Web guiding for correcting edge
