    4-16 Oz 65-75 Pcs/Min Ultrasonic Double Wall Paper Cup Machine Medium Speed

    Ask Lasest Price
    Brand Name : FECT
    Model Number : PF-588T
    Payment Terms : 30% T/T as deposit in advance, the balance by T/T after production
    Supply Ability : 35 sets per month Automatic Double Wall Paper Coffee Cup Making Machine Price
    Delivery Time : Within 30 working days after deposit received
    Price : USD$ 14,762/ Set
    • Product Details
    • Company Profile

    4-16 Oz 65-75 Pcs/Min Ultrasonic Double Wall Paper Cup Machine Medium Speed

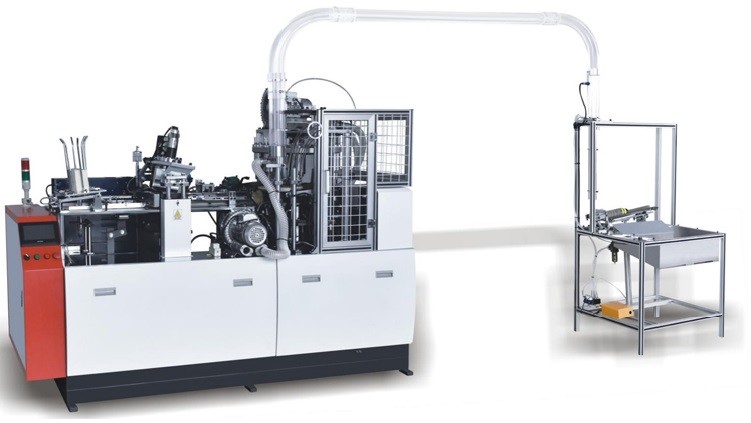

    PF-588T medium-speed intelligent external paste machine is a multi-station automatic paper cup external paste forming equipment. , veneer and light eye detection, fault alarm counting and other functions are covered with a layer of heat insulation outside the paper cup. The machine has a reasonable design, convenient maintenance, and simple operation. Ideal for coffee jelly paper cups).

    4-16 Oz 65-75 Pcs/Min Ultrasonic Double Wall Paper Cup Machine Medium Speed


    Technical Specification


    ModelPF-588(Ultrasonic)
    Cup sizes4-16oz cups
    Wrap materialGrey background White cardboard or coated paperboard
    Speed65-75 pcs/min
    Voltage

    220V 1phase or 380V 3phase 50Hz, (Better use 380V 3-phase)


    We use 220Vstandard.If your power is different,Please declare in advance.


    Power5.5KW
    Machine weight1700KG
    Machine size2350X1350X1800mm

    ♦ Configuration♦


    ItemsQantityCountryBrandRemark
    Miniature circuit breaker2ChinaChint
    Miniature circuit breaker DZ47-63/20A1P3ChinaChint
    Miniature circuit breaker DZ47-63/5A1P1ChinaChint
    AC Contactor CJX2-0910/220 V4FranceSchneider
    AC Contactor CJX2-1810/220 V1FranceSchneider
    AC Contactor CJX2-3210/220 V1FranceSchneider
    solid state relay4TaiwanMingweisolid state relay
    Small relay CJ-3/DC24V2ChinaXinling10
    button8South KoreaAutonics
    Photoelectric switch 18 mm4ChinaRuixiang
    limit switch2ChinaChint
    promise1ChinaXinling
    Encoder1KoreaAutonics
    thermocouple4ChinaHuibang
    Terminal TC-2.520ChinaHaiyan

    Contains 2

    of 16 sections

    Photoelectric switch import4South KoreaAutonics
    Switch power supply DC24V 15W1TaiwanMingwei
    Plywood 500*500*51
    electric wire1ChinaXingada
    Accessories, hoses, trunking. Silicone sleeve binding post1China
    trumpet1ChinaZTE
    Police Lights1ChinaZTE
    Operation box24ChinaZTE
    button box1ChinaZTE
    relay board4JapanOmron
    PLC1ChinaInovance
    inverter1ChinaInovance
    Screen1ChinaInovance
    temperature modules1KoreaAutonics

    FAQ

    Q1: Are you manufacturer or trading company?

    A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.

    Q2 : Do you have relevant certificate?

    A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.

    Q3 : What payment terms are accepted?

    A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.

    Q4 : Do you inspect the finished machines?

    A: Sure, we test every machine before packing and provide test video.

    Q5 : When can the machine be shipped after order is placed?

    A: It depends on machine model and quantity, some stock machines can be shipped within 25 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.

    Q6: How about the warranty and after-sale service?

    A: Our machines have one years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
