Electric equipment
| Sample box | Speed depends on box type and size |
| Open square paper box | 120-150pcs/min |
| Burger box | 80-120pcs/min |
| Takeaway box | 60-110pcs/min |
| Square box with cover | 60-110pcs/min |
| Irregular triangle box | 30-50pcs/min |
♦ Technical Specification ♦
| Voltage | 220V 50Hz ( at customer requirements) |
| Raw materials | 180-600 g/m2 (white cardboard, corrugated paper) |
| Product speed | 150pcs/min |
| Bonding/Gluing device | Water-based glue |
| Paper thickness | Max 1.5mm (180g-600g) |
| Electrical requirement | 4.5kw/h |
| Air requirement | 2kg/cm²*200mL/min |
| Equipment size | 2.95*1.3*1.3m |
| G.W. | 2 T |
Included tools
| Name | Quantity |
| Toolbox | 1 piece |
| Angle wrapper | 1 set |
| Auxiliary strip | 4 pieces |
| Thin auxiliary strip | 4 pieces |
| Curved crochet | 4 pieces |
| Long crochet | 4 pieces |
| Crochet seat | 1 piece |
| Burger Box Knife | 2 pieces |
| Sponge stickers | 1 piece |
| Triangle seat | 5 piece |
Why choose us
1. The machine is controlled by the PLC intelligent system and can
produce complex boxes.
2. One machine can produce a variety of different products, and the
time for changing the mold is short.
3. Automatically collect, stack, inventory finished products, low
noise, high environmental protection.
♦Features♦
1). Finished carton outing device full automatic carton outing
device (feeding, collection, stacking) and fixing with counting,
convenient for packing and save labors
2). Electrical components are internationally famous brands such as
japan Omron, French Schneider, Germany Siemens , delta, etc import
parts. And we use PLC programmable control and touch screen
interface.
3). Device for feeding Water-based adhesive (glue)
high efficiency and high precision to feeding glue and the sealing
edge of the carton can be adjustable, its device design reasonable,
compact form and running steadily, easy and convenient to clean.
4). The Photoelectric failure-detecting system is available, if
there are no papers or paper feeding blocking, the machine will
stop automatically by itself, so, it can reduce the cost consume,
and increase more safety performance.
About Products
1. Gluing
Adjustable glue rolling system, convenient for glue spot
positioning and mold change.
2. Paper feeding
Photoelectric sensor feeding paper is more accurate and reduces
paper waste.
3. Forming device and box collector
The mold height is adjustable and can be made into various
specifications and shapes, such as the taper box and flapped
hamburger box etc. Automatic counter can be set mark 100/200pcs one
time for paper box subgroup packing.
The size of the box collecting frame can be adjusted by hand wheel
simple and convenient. When change the mold the frame can be
opened, more convenient to adjust the position of hook.
FAQ
Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also
accept L/C and Western Union
Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to
quality controlling from the very small thing (even a small screw
we will choose the best quality) from the beginning.
Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team
to help you solve problems.The Warranty is one year and if the
machine is damaged by natural not by human, we can send the new
parts to you for free.
Q: Do you factory accept customized configuration?
A: Yes. About electric parts, you could choose SIEMENS, Schneider,
Delta and etc. For the machine device, web guiding, video monitor,
pneumatic-unwinding loader,electric-rewinding unloader, slitting
station rotary die cutting station, lamination and waste rewinding
are optional. For the specific combination, please contact us.
♦Application♦

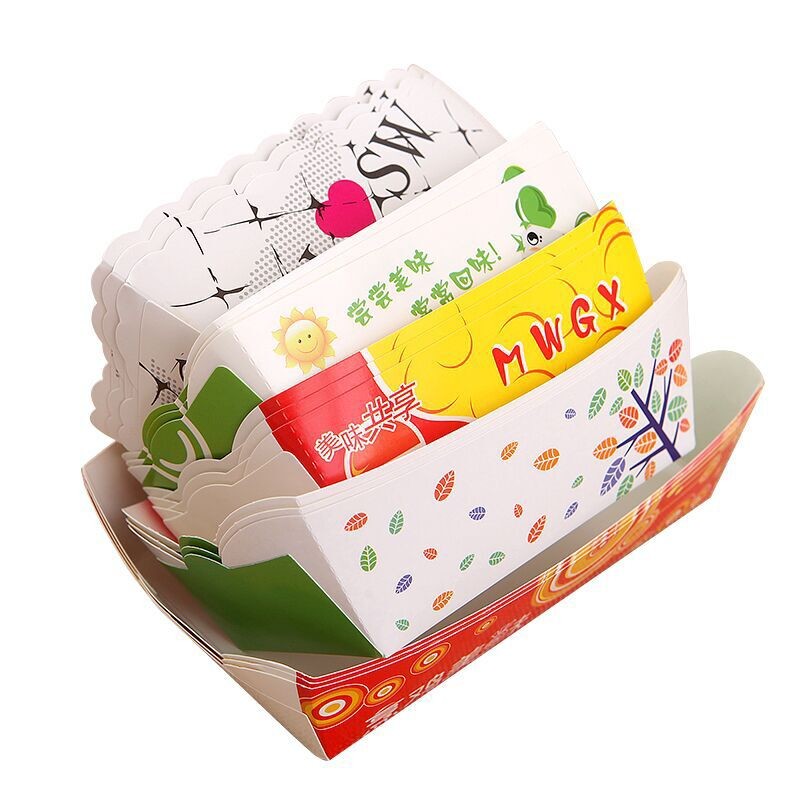

PFC-1200 Automatic dining and french fries rigid box forming
machine is an ideal equipment to produce paper box such like
hamburger box, chips box, fried chicken box, kids meal box, etc.
With firm structure, high quality, low noise and high efficiency.
It has paper feeding unit, adjusted unit, glue unit, forming unit,
finished products collecting unit and also counting unit.
