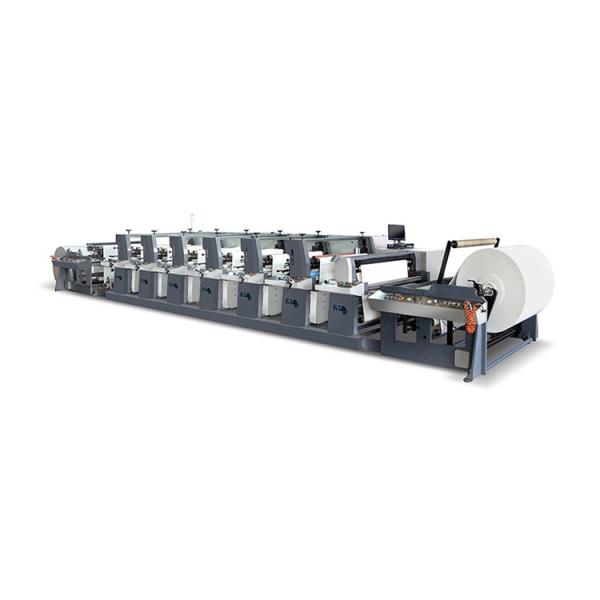

    CE Multi Color Corrugated Carton Box Printing Machine 150KW

    Ask Lasest Price
    Brand Name : Multi Color 8 Color Corrugated Carton Flexo Printing Machine For Carton
    Model Number : PF-CS1020 Multi Color 8 Color Corrugated Carton Flexo Printing Machine For Carton
    Certification : CE
    Price : USD 256096 To USD 258000 Per Set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 45 Work Day
    • Product Details
    • Company Profile

    CE Multi Color Corrugated Carton Box Printing Machine 150KW

    Multi Color 8 Color Corrugated Carton Flexo Printing Machine For Carton


    Multi Color 8 Color Corrugated Carton Flexo Printing Machine For Carton is suitable for eco-friendly packaging, such as the pre-priting carton of box,paper bag, paper box, paper cup used for food, medicine use.


    Paper used: kraft paper, carton board materials, coated paper, liner paper, laminated paper, nonwoven paper.


    Technical Parameters


    Specification

    PF-CS1020

    Max.Web Width

    1020mm

    Max.printing width

    1000mm

    Printing Repeat length

    300-1200mm

    Max.Unwinder Diameter

    1524mm

    Max.Rewinder Diameter

    1524mm

    Gearing

    1/8cp

    Max Mechanical Speed

    240m/min

    Drying mode

    A.Warm Drying. B.IR Drying

    Oil Used

    Water based Ink

    Power Requirement

    380V 3PH 60Hz

    Power Consumption

    150KW


    ♦Feature♦


    1. Petal Type plate mounting, anilox and cylinder with quick change structure


    2. Printing unit easy operation, cylinder and anilox pressure set successfully by once


    3. Plate full of servo shaft-less transmission, automatically pre- print, time saving and material saving


    4. Registering remains the same during lifting process.


    ♦Configuration♦


    Unwinding Unit


    1.Shaftless unwinding unit


    ​2.Unwind unit 60”(1524mm)capacity


    3. Mandrel 3” and 6” diameter


    4. Hydraulic paper shaft lifting and descending device: mainly used for loading and unloading of paper rollers, no need of forklift or other handling tools


    5. Web break sensor, automatically shut down when paper broken.


    Web Guide System


    1. Paper Splicing Table: with pneumatic paper holding device.


    2. Ball screw electric actuator.


    3. Adopt the photoelectric sensor for web guide transmission.


    4. Electronic web guide traction device. If there is any excursion in paper feeding, the system will have a constant and accurate adjustment.


    5. Adopt closed loop control system to accurately detect the deviation and correct it.


    6. Hard Anodization to the paper guide rollers HV 800-1000.


    7. Inspection:the edge.


    8. Web Guide precision:±0.02mm.


    ♦Details♦


    CE Multi Color Corrugated Carton Box Printing Machine 150KW

    CE Multi Color Corrugated Carton Box Printing Machine 150KW


    ♦About Us♦


    Zhengzhou Perfect Co., Ltd. is a manufacturer of paper product making machinery, like paper cup machine, paper bowl machine, paper plate machine, paper lid machine, plastic lid machine. We support the whole line for the food container, from the raw materail, printing machine, die cutting machine, forming machine, and other related equipment.
    With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry, food and other industries and are widely recognized and trusted by users and can meet continuously changing economic and social needs.


    We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!



    ♦FAQ♦


    Q1: Are you manufacturer or trading company?


    A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.


    Q2 : Do you have relevant certificate?


    A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.


    Q3 : What payment terms are accepted?


    A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.


    Q4: How about the warranty and after-sale service?


    A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
