Paper Cup Bowl 4 colors 36kw 50m-60m/min Flexo Printing Machine
| Package detail | Wooden case/ 4 color paper cup bowl flexo printing machine for sale |
| Package size | 4.9m×2.2m×2.6m |
| Gross weight | 4600kg |
♦Features♦
1. Unwinding adopts auto tension controller.
2. The printing unit can register in 360degress;each printing unit
can mesh roller and improve the printing efficiency.
3. Unwinding is controlled by magnetic powder brake and rewinding
is controlled by magnetic inverter motor .
4. The machine can finish material-feeding, printing,rewinding in a
lump.It is an ideal machine for printing note and top-grade paper
cup.
5. Each printing unit adopts 360° adjustment, it can independently
gear and loosen,so other printing units can continue to print.
6. Equipped with web guide for tracking.
7. The main motor is adopted the import stepless, regulation of
frequency conversion.

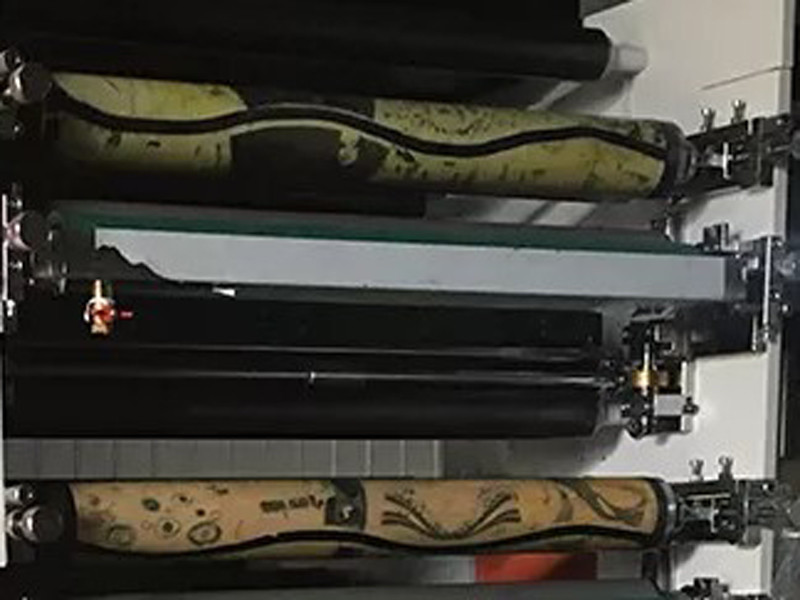

8. Adopt high quality ceramic anilox cylinder to transfer the ink.
9. The ink rollers will be separated from the printing rollers,and
keep running when the machine stops.
10. Each printing unit equips with IR dryer.
♦Technical parameters♦
| Printing speed | 50m-60m/min |
| Printing color | 4 colors (1/2/3/4/5/6/7/8 color for option) |
| Print max width | 850mm |
| Unwind roll width | 860mm |
| Unwind roll diameter | 1300mm |
| Rewind roll max diameter | 1300mm |
| Printing length | 175-370mm |
| Registering accuracy | ±0.15mm |
| Voltage | 36kw |
| Air press | 0.6MP |
| Weight | 4500kg |
| Dimension | 4500X1800X2250mm |
♦Description♦
1. 4 color paper cup bowl flexo printing machine is very suitable
for standardization. Flexo printing machine through the many plates
holes in cylinder to convey the ink, once you choose the right
roller in the printing process, the color change little, to some
extent,can reduce the dependence on operator experience. And
through this ink transmission, color is well-distributed.
2. The paper cup and bowl flexography printing machine also can
combine with other printing machine like Gravure printing and
screen printing machine, for exquisite label printing work.
3.At last, the label printing press is environmental because of its
UV ink or Water ink, non-toxic ,colorless and tasteless, accord
with sanitary requirement.
4.4 color paper cup bowl flexo printing machine is fully can
complete the whole process of feeding, printing, varnishing,
drying, laminating, die-cutting, rewinding and sheeting. It is high
economic benefit and non-polluting ink.
5.4 color paper cup bowl flexo printing machine belongs to
flexographic printing machine. The biggest reason why it used for
high-grade paper cup printing is its ceramic anilox cylinder, which
make printing on paper more precise and finer.
6. It is the ideal choice for factory to print many kinds of paper
cup, coffee cup, paper bowl, paper box, etc
♦Standard Configuration♦
1) One rewinding tension controller
2) 1 pcsElectromagnetism valve
3) Main Motor
4) Button
5) All low-tension electrical
6) Web guiding for correcting edge
7) 2 sets Printing roller
8) 2 sets ceramic anilox roller (made in shanghai)
9) 5 group * 3 sets printing rollers = 15 pcs (buyer offer
dimension)
10) Transducer(2 pcs)
11) One unwinding tension controller
