    Paper Lunch Box Roll To Roll Flexo Printing Machine 300mm-1200mm Length

    Ask Lasest Price
    Brand Name : Unit Type Roll To Roll Corrugated Carton Box Paper Lunch Box Flexo Printing Machine
    Model Number : PF-CS1020 Unit Type Roll To Roll Corrugated Carton Box Paper Lunch Box Flexo Printing Machine
    Certification : CE
    Price : USD 256096 To USD 258000 Per Set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 45 Work Day
    • Product Details
    • Company Profile

    Paper Lunch Box Roll To Roll Flexo Printing Machine 300mm-1200mm Length

    Unit Type Roll To Roll Corrugated Carton Box Paper Lunch Box Flexo Printing Machine


    Unit Type Roll To Roll Corrugated Carton Box Paper Lunch Box Flexo Printing Machine is suitable for every packaging, such as the pre-priting carton box,paper bag, paper box, paper cup used for food, medicine use.


    Paper used: kraft paper, carton board, coated paper, liner paper, laminated paper, nonwoven paper,carton box.


    Technical Parameters


    Specification

    PF-CS1020

    Max.Web Width

    1020mm

    Max.printing width

    1000mm

    Printing Repeat length

    300-1200mm

    Max.Unwinder Diameter

    1524mm

    Max.Rewinder Diameter

    1524mm

    Gearing

    1/8cp

    Max Mechanical Speed

    240m/min

    Drying mode

    A.Warm Drying. B.IR Drying

    Oil Used

    Water based Ink

    Power Requirement

    380V 3PH 60Hz

    Power Consumption

    150KW


    ♦Feature♦


    1. Closed loop tension control is used to make printing tension much more stable,and register much more acurate.


    2. Automaticlly eletronic web-guide system.


    3. Onlune printing register detection.


    4. Register system can be operated automatically or by manpower.


    5. Printing unit easy operation, cylinder and anilox pressing once successfuly.


    6.Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.


    ♦Configuration♦


    Video Web Inspection System


    1.Video is high efficiency and synchronous, can be moved left and right


    2.With 14 inch monitor one pcs


    3.one stroboscope lamp


    4.It can be enlarged 18 times of image


    Out Feed Tension Control System


    1.The rear tension unit is made of alloy and cast iron


    2.Use the double side pressure rubber to clutch and feed and to guarantee the stale tension


    Rewinding Unit


    1.rewind unit 60’’(1524mm)capacity, with 3’’ shaft.


    2.Hydraulic roll lift


    3.Web break sensor, automatically shut down when paper broken.


    4.unit with servo motor drive, epicyclic gear box


    ♦Details♦

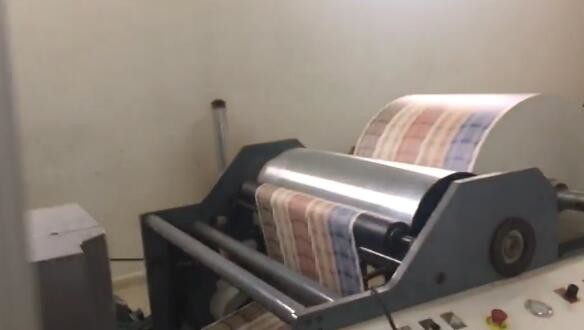

    Paper Lunch Box Roll To Roll Flexo Printing Machine 300mm-1200mm Length

    Paper Lunch Box Roll To Roll Flexo Printing Machine 300mm-1200mm Length


    ♦About Us♦


    Zhengzhou Perfect Co., Ltd. is a manufacturer of paper product making machinery, like paper cup machine, paper bowl machine, paper plate machine, paper lid machine, plastic lid machine. We support the whole line for the food container, from the raw materail, printing machine, die cutting machine, forming machine, and other related equipment.


    With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry, food and other industries and are widely recognized and trusted by users and can meet continuously changing economic and social needs.


    We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!



    ♦FAQ♦


    Q1: Are you manufacturer or trading company?


    A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.


    Q2 : Do you have relevant certificate?


    A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.


    Q3 : What payment terms are accepted?


    A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.


    Q4: How about the warranty and after-sale service?


    A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
