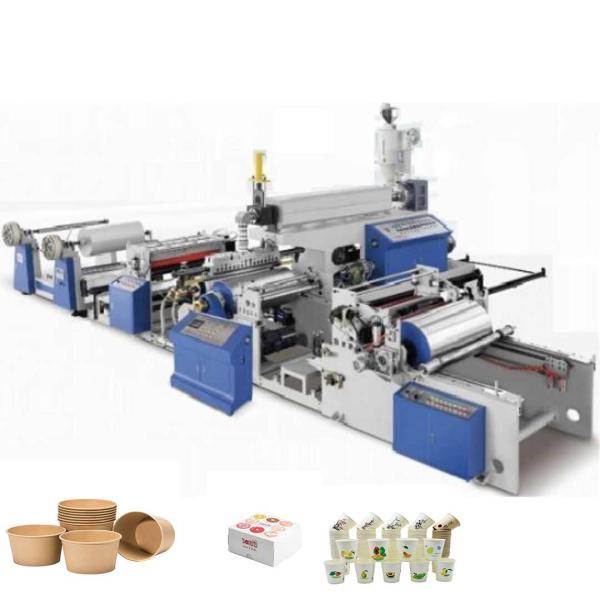

165kw Extrusion Lamination Paper PE Coating Machine 800-1600mm Width

Ask Lasest Price
Brand Name :	FECT
Model Number :	PF-1700
Price :	USD$ 85,000/ set
Payment Terms :	30% T/T as deposit in advance, the balance by T/T after production
Supply Ability :	15 Set/Sets per Month
Delivery Time :	Within 60 days after deposit received

Add to Cart

Product Details
Company Profile

165kw Extrusion Lamination Paper PE Coating Machine 800-1600mm Width

♦Application♦

This machine is Casting Lamination Compounding Machine,can accept LDPE,PP,EVA,EAA, Wax&based water etc. lamination grade material,Use for film(BOPP,BOPET,CPP,CPE, etc) Paper,Aluminum Foil,Non-woven, etc. as base material for compounding lamination.Widely used in medical packaging,food packaging,office packaging,industrial packaging and other packaging.

♦Technical Specification♦

Screw diameter	φ105mm
L/D	33:1
Finished film width	800-1600mm
Lamination thickness	0.01-0.10mm
Usable resin	LDPE, LLDPE, PP, EVA, EAA
Design line speed	210m/min
Max extrusion capacity	330kg/h
Main motor power	55kw
Total power	165kw
Diameter of main unwinding	1300mm
Diameter of winding	1300mm
Weight	15 ton
Overall size	10000×12000×3200 mm
Power supply	380/3/4/50(Volt/Ph/Line/Hz)
Working Speed	Max. 180m/min, based on detail material
Roller Width	1700 mm
Extrusion Material	LDPE (MFR=4～15) PP (MFR=15～25) EVA (VA:5～20%, MFR=3～16) EMAA, EAA (AA: 4～12%, MFR=5～14) EMA (MA: 5～20%, MFR=5～9) And Other Lamination Material
Extrusion resin thickness uniformity	±5%
Heating	Electrical Heating
Temperature Control	Temperature Controller
Base material	Paper(35～425g/m²),Mainly for 40～120g/m²
Machine Control	PLC Programmable Controller,Touch Screen Control
Drive Motor	Ac vector frequency conversion motor(Siemens)
Converter	AC Vector Converter(Inovance)
Total Power	Loading Power 165kw(Using Power 85～100kw)
Cooling Water Supply	Temp. 16～25℃,Flow Rate 80m³/h,Water Pressure ≧2kg/cm²
Air Supply	Air Pressure ≧ 6kg/cm²,Air Consumption 15m³/h

Packaging & Shipping

Package detail	Wooden case/1300mm automatic single side extrusion lamination pe coating paper machine
Package size	10100×12100×3400 mm
Gross weight	16T

♦Features♦

1,Entire machine data can set in PLC touch screen,PLC control converter,drive by Motor.
2,Extrusion Laminating Machine adopts the casting technology, laminate the two layers materials together.
3,Made by compounding fluid, plastic film, woven cloth or aluminum foil into double layer,
4,Three layer or multi-layer new materials, which are used for packaging products of cement, chemicals, forage, food, medicine, adhesive tape cloth, plastic coating paper cups and fast food boxes, etc.

♦Description♦
1300mm automatic single side extrusion lamination pe coating paper machine is at the forefront of technology, boasting a high manufacturing quality with components suitable for processing paper, nonwoven fabric ,aluminium and so on. we has focused on high performance extruders with special screw design for a wide range of materials like PP, LDPE, LLDPE, PP, EVA, EAA. With customized solutions including different layers, sizes and die widths.

FAQ

Q1: Are you manufacturer or trading company?

A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.

Q2 : Do you have relevant certificate?

A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.

Q3 : What payment terms are accepted?

A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.

Q4 : Do you inspect the finished machines?

A: Sure, we test every machine before packing and provide test video.

Q5 : When can the machine be shipped after order is placed?

A: It depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.

Q6: How about the warranty and after-sale service?

A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
