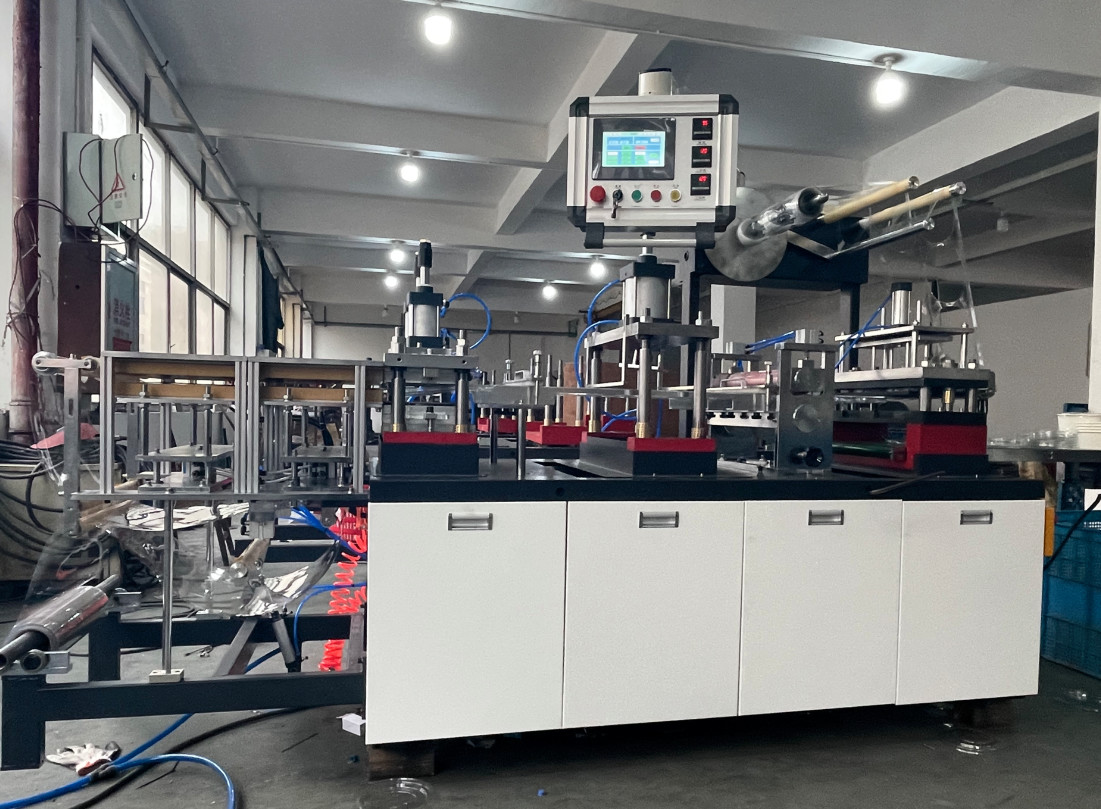

Automatic Oil Lubrication Heating Forming One Time Cup Lid Machine,
the machine is adopted with high precision big cam structures and
running smooth ,low noise. Machine runs at very less noise and lid
forming very stable. It is PLC controlled, which make the operation
very esay and less maintenance. It is based on the principle of
aluminum-plastic blister packaging machine and the advantages of
positive pressure forming machine, optimized equipment functions to
achieve automatic unwinding, positive pressure forming or pressing
forming, hardware punching or laser cutting of metal molds,
punching and stacking of metal molds, unloading, recycling of
scraps or recycling of shearing sections, etc.
♦Technical Parameters♦
| Model | PF-420W Automatic Oil Lubrication Heating Forming One Time Cup Lid
Machine |
| Punching speed | 15--35(times/min) |
| Power | 380v/220v/50HZ 4 KW |
| Stroke adjustable range | 160mm |
| Max. Forming Depth | 45mm |
| Max. Forming Area | 420*160mm |
| Consumption | >0.2m3/min |
| Air Pressure | 0.4--0.7mpa |
| Overall Dimensions | 2500*1000*1600mm |
| Weight | 1.5t, G.W 1.8T |
| Package | 3000*1100*2000mm |
♦Feature♦
1. The paper lid machine is controlled by PLC, all data show on
touch screen, all process time set by coder.
2. The Knurling is similar to cup forming process, heating, folding
, knurling and forming.
3. hot air system guarantee the stability of heating.
4. Many photoelectric sensors are used in machine, so it is easy to
find faults if happens, and it can auto stop and give alarm when
meet problems. In this way, all machine part will not knock against
one another, it will improve machine life circle .
5. Automatically Oil lubrication system inside for lubricating
machine moving parts, make them longer service life, not easily get
broken .
♦Company Information♦
Zhengzhou Perfect Co., Ltd. is a manufacturer of paper product
making machinery, like paper cup machine, paper bowl machine, paper
plate machine, paper lid machine, plastic lid machine. We support
the whole line for the food container, from the raw materail,
printing machine, die cutting machine, forming machine, and other
related equipment.
With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in industry, food and
other industries and are widely recognized and trusted by users and
can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact
us for future business relationships and mutual success!
♦FAQ♦
1.Q: Is it possible to produce lid of different sizes on the same
paper cup lid making machine?
A: Yes, just need to change the mold
2.Q: Payment term?
A: T/T 30% as advance, the balance by T/T after production.
3.Q : Quality Guarantee?
A: One year warranty and lifelong technical service, the seller
guarantee the machines are 100% new. The above clause is ONLY
effective under the machine is being properly used, any artificial
misuse or destroy prepensely is not within the limit of Quality
Guarantee.
4.Q : Delivery time?
A: Within 35 days after receiving deposit
5.Q : Installation and Debugging of paper cup lid making machine?
A: we can send technician for installation and training at the cost
of buyer (visa, round tickets, eating, accommodation in his country
and salary 100 USD /day
