    Paper Straw Jumbo Roll Slitting Rewinding Machine ODM OEM

    Ask Lasest Price
    Brand Name : Fect
    Model Number : PF-800
    Certification : CE
    Price : FOB US $12980- 14980/ Set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 90 sets per month
    Delivery Time : within 35 working days after payment confirmed
    • Product Details
    • Company Profile

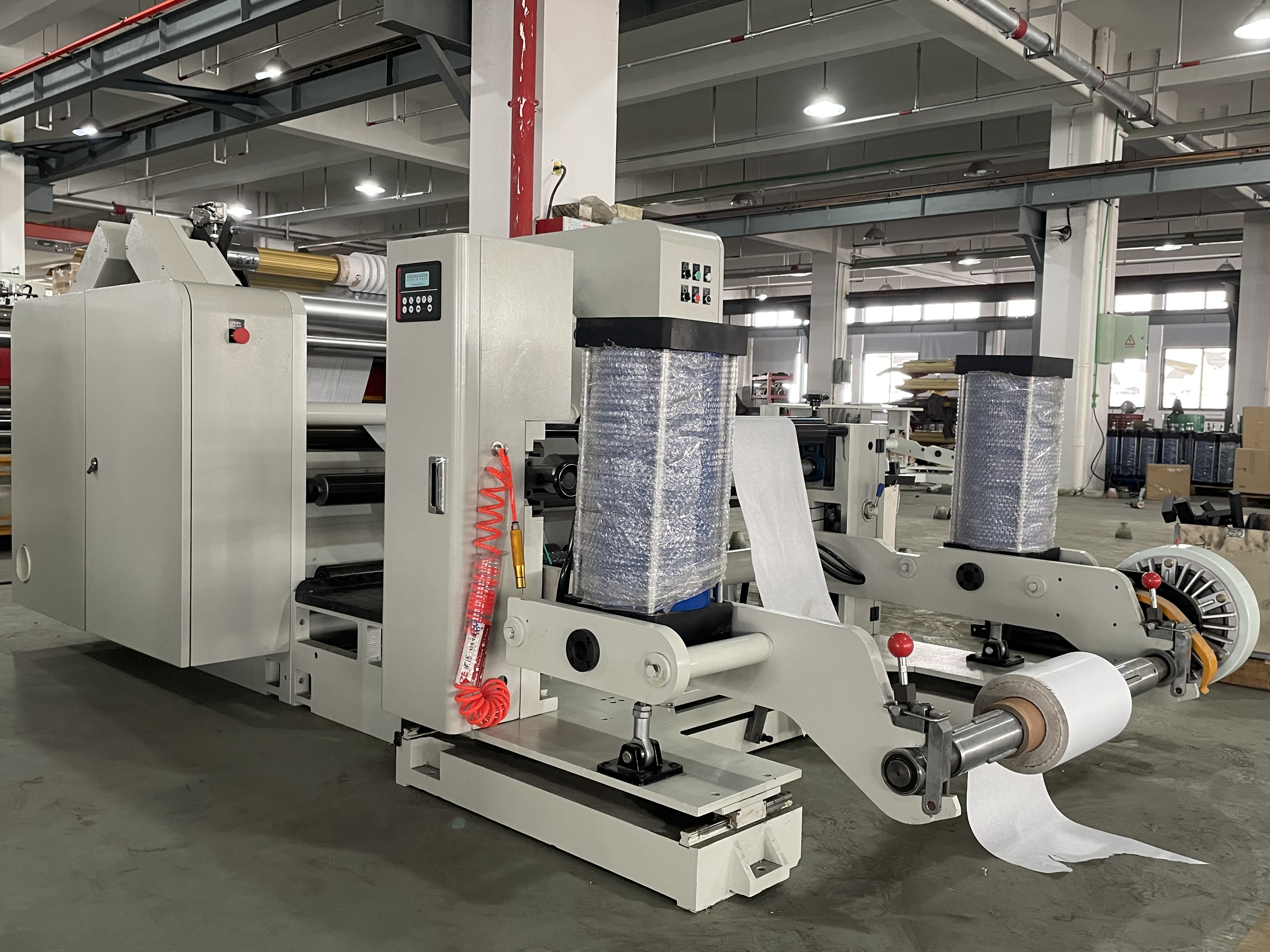

    Paper Straw Jumbo Roll Slitting Rewinding Machine ODM OEM

    fabric pet plastic film Paper Straw jumbo roll Slitting rewinding Machine

    This Slitter Rewinding Machine is suitable for Printing&Packaging Industry, converting jumbo roll to a narrow roll(The minimum width is 10mm). Jumbo roll material 60-450gsm, such as cardboard paper, kraft paper, coated paper, silicon paper, plastic film, PET,non-woven, fabric, leather, etc slitting & rewinding.


    Technical parameters of fabric pet plastic film Paper Straw jumbo roll Slitting rewinding Machine


    ModelPF-800
    Unwinding Roll Wide800mm
    Unwinding Roll DiameterØ1400mm
    Minimum Slitting Wide5mm
    Slitting Precision±0.2mm
    Rewinding Roll DiameterØ620mm
    Machine Speed200m/min
    Machine Power9KW
    Machine Size3200x1900x1500mm
    Machine Weight3200KG

    Application 1: Paper Drinking Straw Manufacturing

    The paper drinking straw manufacturing processing is similar with paper tube. It consist of three layers of paper. So you must feed three different width rolls into the straw forming machine to make paper straw.Our the model paper slitting machine can make small width paper rolls for manufacturing paper straws(width can less than to 5mm).


    Application 2: Insulation paper tape/Anti-rust paper tape

    The insulation paper tape and anti-rust paper tape normally have small width rolls type. Manufacturing these products, you must have a set jumbo roll slitting machine with a center and surface rewinding structure.

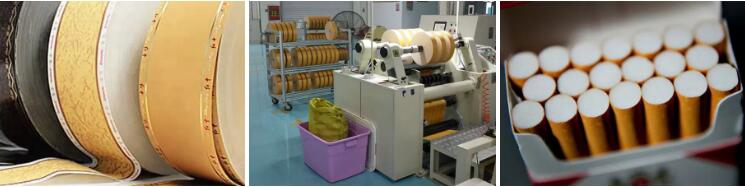

    Application 3: Cigarette/Tobacco paper rolls or tipping paper rolls for rolling

    In addition to books and packaging, the product with the largest amount of paper should be cigarettes. Fully automatic cigarette-making machines also need to use very narrow paper rolls (between 20-30mm in width). So our slitting machine is favored by many cigarette paper mills. They use our slitting machine to process large rolls of paper to meet the requirements of cigarette rolling machines.


    Details of fabric pet plastic film Paper Straw jumbo roll Slitting rewinding Machine
