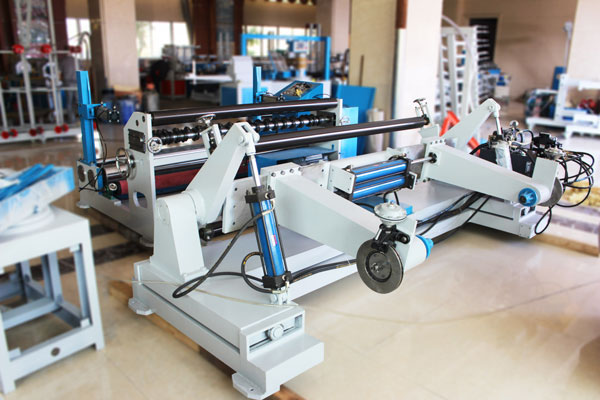

    200 M/Min 1600MM Paper Slitting Machines Paper Cutting And Rewinding Machine

    Ask Lasest Price
    Brand Name : Fect
    Model Number : PF-200FQ
    Certification : CE
    Price : FOB US $14000- 15000/ Set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 90 sets per month
    Delivery Time : within 35 working days after payment confirmed
    • Product Details
    • Company Profile

    200 M/Min 1600MM Paper Slitting Machines Paper Cutting And Rewinding Machine

    paper slitting machines


    PF-200FQ Jumbo Paper Slitting Rewinding Machine is suitable for Kraft paper; Tea paper board; Bobbin paper; Art paper etc.

    Multi Blades Slitting. minimum slitting length is 35mm. Rewinding part adopted with air inflatable shaft; finished rolls can be removed more easier. Rewinding side has curved roller and finished rolls can be seperated automatically.


    High Speed 200 M/Min 1600 MM Cutting Rewinding Paper Slitting Machines


    1. Double blades (upper blades and down blades) slitting. Cutting edges are more smooth and neat.

    2. Adopt shaftless material loading device which can bear 2000kgs weight.
    3. Pneumatic loading and unloading system; material paper roll loading and finishedrolls unloading to be automatically.
    4. Width and diameter of paper roll can be customized.

    Technical parameters of paper slitting machine


    Main ParametersControl System
    Material paper60-600gsmMain motor11kw Wannan
    Unwind width600-1600mmElectric componentsCHNT
    Unwind diameter1400mmPneumatic componentsJing wei
    Rewind diameter1400mmBearingHa er bin
    Minimum slitting width35mmMain Configuration
    Working speed0-200m/minJumbo paper loading device1 pair (76mmID)
    Speed regulationby InverterHydraulic lifting device1 set
    Material paper loading deviceShaftlessDischarging air cylinder2 piece
    LoadingAutomatically by HydraulicBraking device2 pieces (air brake)
    UnloadingAutomatically by pneumaticBlades20 sets (top&bottom)
    Rewinding deviceAir expanding shaftOperating box1 set
    Power supply380V 50Hz 3PhaseTool1 set
    Measurement & WeightCurved rollerHave

    Measurement


    L3320*W1460*H1250mm (unwind side)
    L2350*W1690*H1190mm (rewind side)

    Weight


    3300kgs

    After Service:


    1 The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine,production,avoid or solve the problem which the buyer will face.
    2. Test run of the machine&training:
    We will adjust the machine well for one week before the deliverying,ensure the machine has the perfect performace!
    3. We can dispatch technologists to buyer’s factory,guiding installation,adjustment for a period,the buyer incharge of the salary, traffice fee,boarding and lodging, communication.
    4.Training of buyer in China:
    We supply the free training of buyer,the training won’t stop until the buyer control the whole lesson!The cost of air ticket,boarding and lodging should provided by buyer
    5. We supply the consumable spare parts for free.



    FAQ of paper straw machine


    Q1:What about the payment terms?

    A1:Always 30% down payment as deposit,70% balance pay before shipping.

    Q2:What about the payment way?

    A2:TT,L/C at sight or Alibaba trade assurance.

    Q3:If you can extend the guarantee time?

    A3:Yes.Our guarantee time is 24 months.Double times of other factory because we have strong confidence for our product.

    Q4:If you will send engineer coming to our factory to install and test the machines?

    A4:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.

    Q5:If you have CE,SGS,ISO certificate?

    A5:Yes,except these,if you also need other certificates,we also can help to apply.
