850 150-200 times/min ±0.15mm High Speed paper cup blank punching
machine
Core Components: PLC, Bearing, Gearbox
Cutting material: Adhesive Paper, PE PP coated Paper
After Warranty Service: Video technical support, Online support

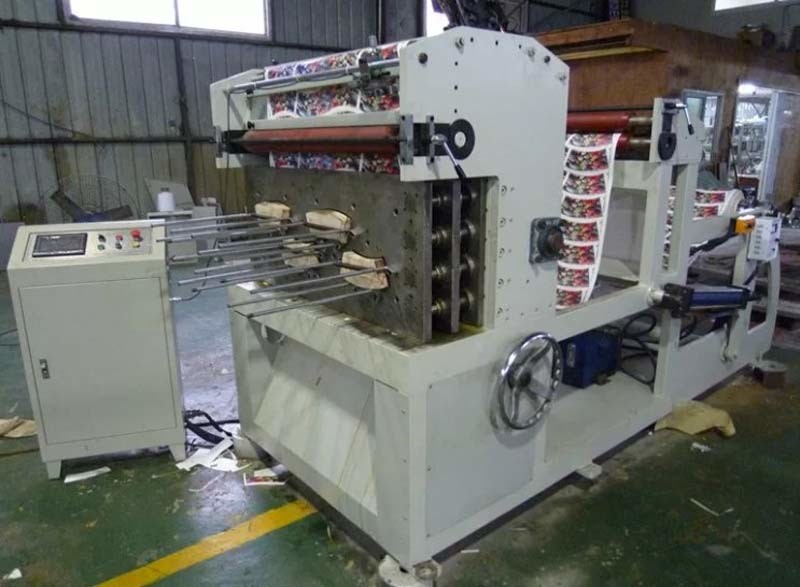

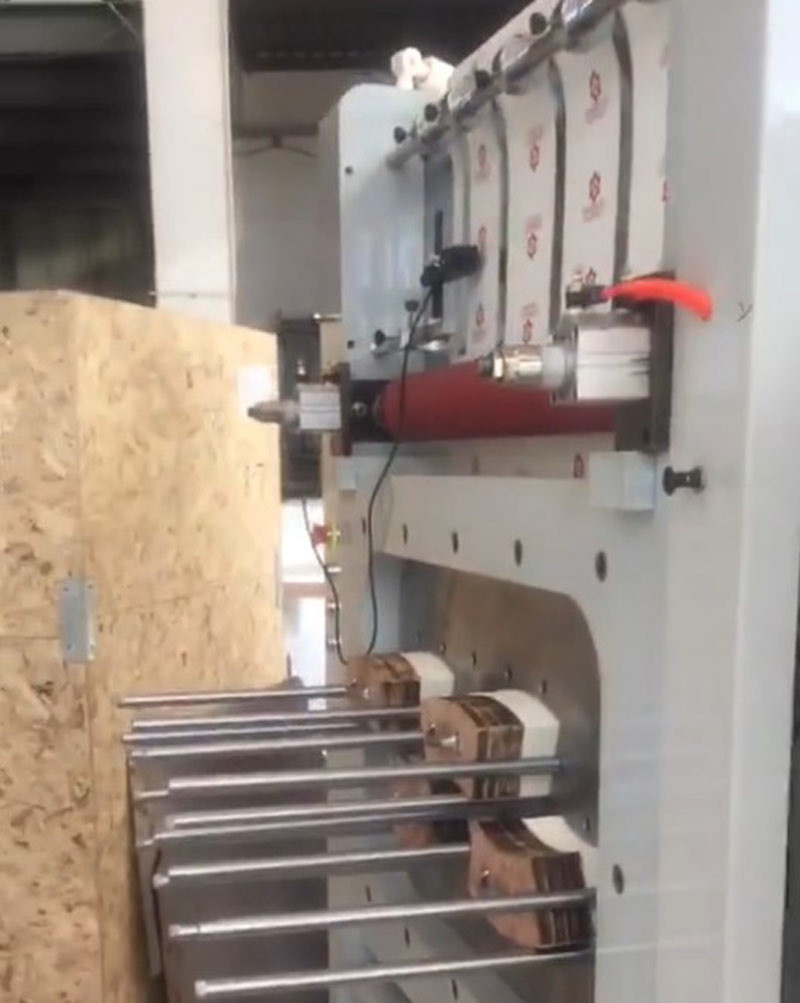

This CQ850 paper cup blank punching die cutting machine is fully
automatic with paper feeding, cutting and rewinding function.
♦Application♦
This is an ideal machine for paper cup, paper bowl factory to cut
many kinds of the paper cup, coffee cup, paper bowl, paper box,
etc.
♦Features♦
1. Adopt the anilox roller to spread ink
2. Unwinding and rewinding are controlled by magnetic power brake,
clutch (or by automatic tension controller of Mitsubishi, made in
Japan)
3. Each printing unit adopts 360 for registration
4. Each printing unit has one IR drier
5. The rubber roller can break away automatically while parking,
and running at a low speed, in order to avoid ink being ary.
6. The main motor is adopted the import stepless, regulation of
frequency conversion
7. Unwinding, web guiding, printing, IR drying, die-cutting, waste,
rewinding, trimming, rewinding, can be finished in one process
♦Technical parameters♦
| Cutting speed | 150-200 times/min |
| Max. web width | 860mm |
| Max. unwind diameter | 1300mm |
| Max. cutting size | 850mmX450mm |
| Precision | ±0.15mm |
| Voltage | 380V± |
| Power | 10kw |
| Oil lubrication | Manual |
| Weight | 3000kg |
| Dimension | 3000x1400x2000mm |
Packaging Details
Wooden Case/ 850 paper cup blank punching die cutting machine
| Package detail | Wooden case/ paper cup blank printing die cutting machine |
| Package size | 39m×18m×2.2m |
| Gross weight | 3500kg |
FAQ
Q: Do you factory accept customized configuration?
A: Yes. About electric parts, you could choose SIEMENS, Schneider,
Delta and etc. For the machine device, web guiding, video monitor,
pneumatic-unwinding loader,electric-rewinding unloader, slitting
station rotary die-cutting station, lamination and waste rewinding
are optional. For the specific combination, pls contact us.
Q: How does your factory do regarding quality control?
A: Quality is the priority. We always regard great importance to
quality controlling from the very small thing (even a small screw
we will choose the best quality) from the beginning.
Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team
to help you solve problems. The Warranty is one year and if the
machine is damaged by natural, not by a human, we can send the new
parts to you for free.
Q: What are the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also
accept L/C and Western Union.
