Brand Name : | FECT |
Model Number : | CQ850 |
Certification : | CE |
Price : | USD$ 19841.00/set |
Payment Terms : | 30% T/T as deposit in advance, the balance by T/T after production |
Supply Ability : | 20 Set/Sets per Month 850 paper cup blank printing die cutting machine |
Delivery Time : | Within 35 days after deposit received |
±0.15mm 150-200 times/min 860mm Paper Cup Printing Punching Die Cutting Machine
If you have any question, you can consult us. We will help you
solve it.
If you prepare to place a big order, We will give you a favorite
price.
Installation and Debugging: we can send technician for installation and training at the cost
of buyer (visa, round tickets, eating, accommodation in his country
and salary 100 USD /day).
Core Components: PLC, Bearing, Gearbox
Cutting material: Adhesive Paper, PE PP coated Paper
After Warranty Service: Video technical support, Online support
♦Technical parameters♦
Cutting speed | 150-200 times/min |
Max. web width | 860mm |
Max. unwind diameter | 1300mm |
Max. cutting size | 850mmX450mm |
Precision | ±0.15mm |
Voltage | 380V± |
Power | 10kw |
Oil lubrication | Manual |
Weight | 3000kg |
Dimension | 3000x1400x2000mm |
Product Description

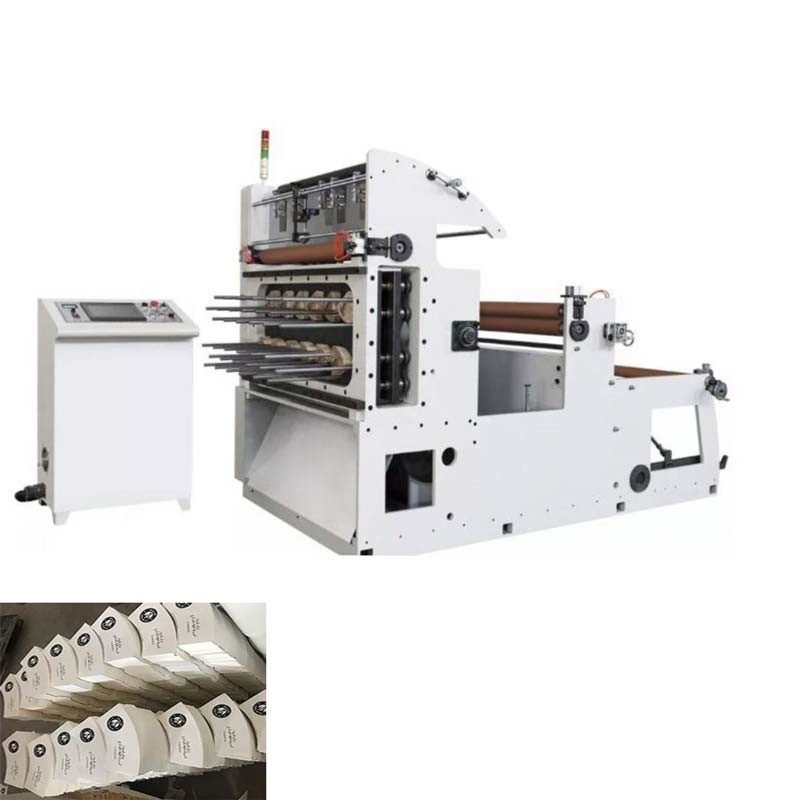

This CQ850 paper cup blank punching die cutting machine is fully
automatic with paper feeding, cutting and rewinding function.
♦Application♦
This is an ideal machine for paper cup, paper bowl factory to cut
many kinds of the paper cup, coffee cup, paper bowl, paper box,
etc.
♦Features♦
1. Adopt the anilox roller to spread ink
2. Unwinding and rewinding are controlled by magnetic power brake,
clutch (or by automatic tension controller of Mitsubishi, made in
Japan)
3. Each printing unit adopt 360 for registration
4. Each printing unit have one IR drier
5. The rubber roller can break away automatically while parking,
and running at alow speed, in order to avoid ink being ary.
6. The main motor is adopted the import stepless, regulation of
frequency conversion
7. Unwinding, web guiding, printing, IR drying, die-cutting, waste,
rewinding, trimming, rewinding, can be finished in one process
FAQ
Q: Do you factory accept customized configuration?
A: Yes. About electric parts, you could choose SIEMENS, Schneider,
Delta and etc. For the machine device, web guiding, video monitor,
pneumatic-unwinding loader,electric-rewinding unloader, slitting
station rotary die-cutting station, lamination and waste rewinding
are optional. For the specific combination, pls contact us.
Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team
to help you solve problems. The Warranty is one year and if the
machine is damaged by natural, not by a human, we can send the new
parts to you for free.
Q: What are the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also
accept L/C and Western Union.
Q: How does your factory do regarding quality control?
A: Quality is the priority. We always regard great importance to
quality controlling from the very small thing (even a small screw
we will choose the best quality) from the beginning.
