Type | PFD-16 |
Cup size: | 40ml-16 oz (other customized size) |
Production capacity | 65-85 pcs/min |
Power source: | 380V/ 220V 50HZ(please inform us your power in advance) |
Suitable Material: | 150-350g/m2 (Single or Double-coated paper) |
Air source | 0.4-0.6 Mpa |
Total Power: | 6 KW |
Weight: | 1680KG |
Machine size | 2100 x 970 x 1500 mm |
Package size: | 2200 x 1100 x 1900 mm (4.598CBM) |
|
A: top diameter:
Min 46mm---Max 110mm
B: bottom diameter
Min 35mm---Max 70mm
C: total height
Min 32mm---Max 132mm
|
Features
1.Three times paper feeding: Paper can be well adjusted with three times feeding process, avoid
the irregularity during folding paper fan.
2.Photoelectric Sensor Detection : The encoder and the Photoelectric Sensor control the machine at the
same time, one paper fan match one bottom to avoid paper waste.
Failure alarm, automatic shutdown.
3.PLC control: The machine is more intelligent, the control is more
accurate, easier operation and the labor is greatly reduced
4.Multiple cooling fans for heat dissipation: Multiple cooling fans
installed to increase heat dissipation and speed up cooling,
ensuring that the machine keep suitable temperature when working.
5. Automatic oil lubrication system : The machine automatically
lubricates each part that needs to be lubricated through the copper
pipe, no need worker spraying oil manually which greatly saves
labor.
6.Waste paper conveying: Waste paper discharged by the tube. When
the machine working, avoid the waste paper enter the machine inside
part, not easy to clean, affect machine running.
7.Sheave drive: The inside of the machine is connected by groove
wheels, and the parts are more tightly connected. It is not easy to
loosen during the operation of the machine and the work is more
accurate.

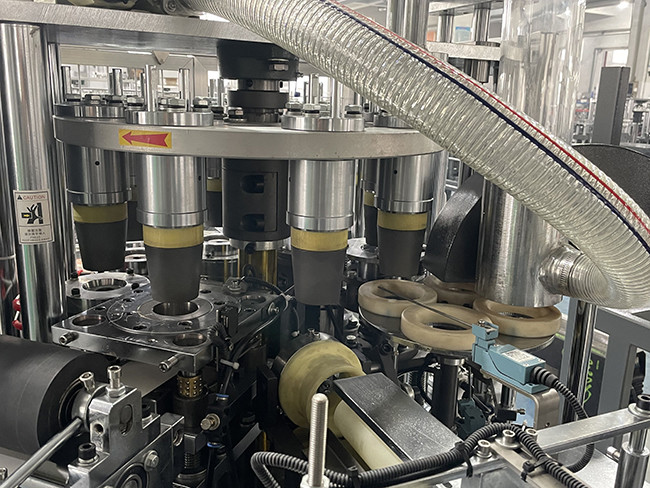

Details
Production line for paper cup:
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory and have export team, welcome to visit our
factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, we have CE, ISO, etc. we also can issue CO, Form E, etc if
you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q4.How does your factory do regarding quality control?
A:Quality is priority. Our Factory always attach great importance
to quality controlling from the very beginning to the very end:
1).Skilful workers care every details in handling the producing and
packing processes;
2).Quality Control Department specially responsible for quality
checking in each process.
