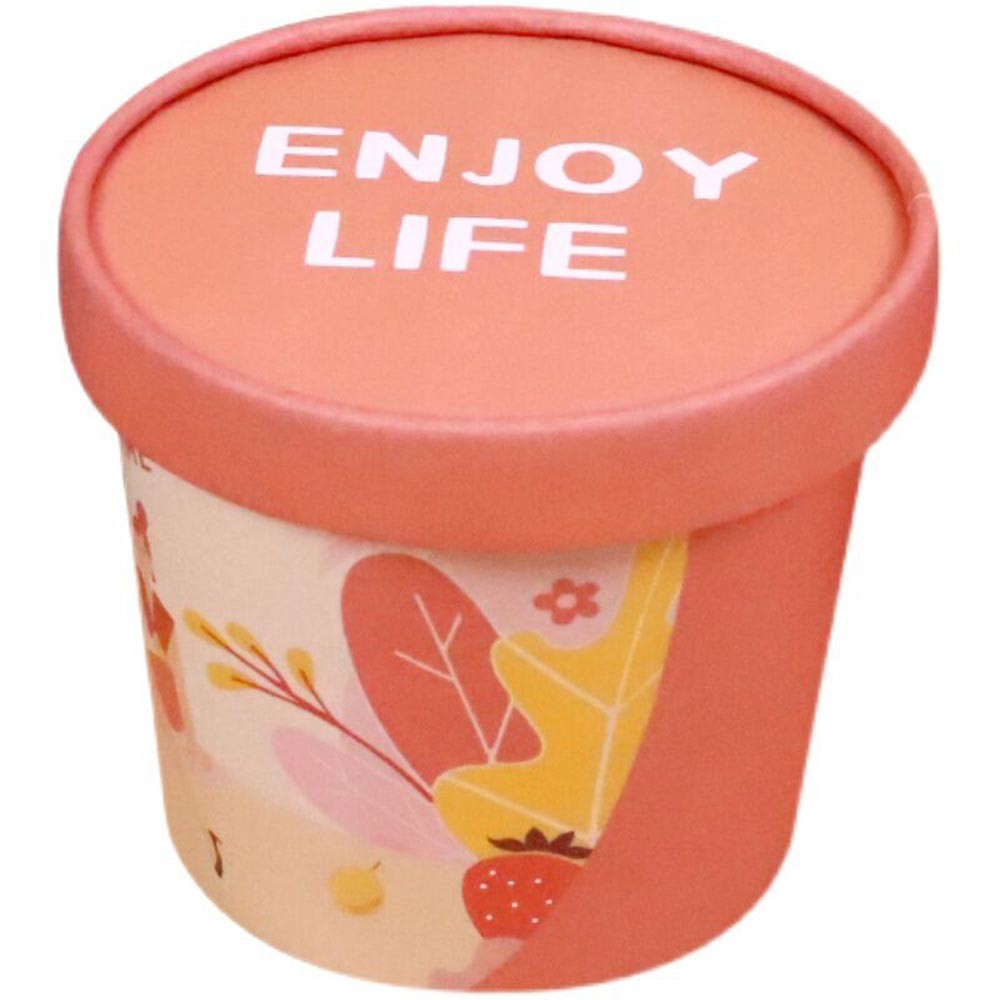

70pcs speed Recycle disposable ice cream paper bowl forming machine
♦ Advantage ♦
1. PF-BOWL intelligent medium-speed paper bowl forming machine has
the advantages of high performance, high efficiency and high
quality; The integral steel body and the oil-drenching lubrication
system ensure the normal and stable operation of the equipment for
a long time;
2. The advanced high-precision cam drive and gear drive make each
station accurate and accurate; Servo tracking paper feeding locks
the size of the bottom paper of the cup, effectively saving raw
materials;
3. The man-machine interface PLC system controls the long-term
stable operation of the whole machine.
♦ Detail ♦
Repeatedly loose paper
Three paper feeds and multiple mediations to avoid unevenness on
both sides of the paper cup.
Photoelectric Sensor Detection
The encoder and the Photoelectric Sensor control the machine at the
same time, a fan-shaped plate with a cup bottom to avoid paper
waste. Failure alarm, automatic shutdown.
PLC control
The machine is more intelligent, the control is more precise, and
the labor is greatly reduced.
Multiple cooling fans
Multiple cooling fans operate at the same time to increase heat
dissipation and speed up cooling, ensuring that the machine works
at an appropriate temperature.
Multiple cooling fans
Multiple cooling fans operate at the same time to increase heat
dissipation and speed up cooling, ensuring that the machine works
at an appropriate temperature
Automatic oil lubrication system
The machine automatically lubricates each part that needs to be
lubricated through the copper pipe, which greatly saves labor
Waste paper transportation
Guided by the conveyor belt, the waste paper is discharged. Prevent
waste paper from being transferred into the machine when the
machine is operating, it is not easy to clean up, and affect the
work of the machine
Sheave drive
The inside of the machine is connected by groove wheels, and the
parts are more tightly connected. It is not easy to loosen during
the operation of the machine and the work is more accurate
Bottom punching system
In the past, the complicated paper feeding process of the bottom
suction paper was prone to overturning. After improving the
equipment, the direct bottom punching method was used to avoid the
bottom turning in one step.
Quality Guarantee: One year warranty and lifelong technical service, Inspection
before delivery is available. The above clause is ONLY effective
under the machine is being properly used, any artificial misuse or
destroy purposely is not within the limit of Quality Guarantee.
Installation and Debugging: we can send technician for installation and training at the cost
of buyer (visa, round tickets, eating, accommodation in his country
and salary 100 USD /day).
♦Technical Specification♦
| Type | PF-BOWL |
| Bowl size: | 8-35oz (other customized size) |
| Max. paper bowl up diameter | 150 mm |
| Max. Paper bowl bottom diameter | 125 mm |
| Max. Paper Bowl height | 115 mm |
| Production capacity | 60-70 pcs/min |
| Power source: | 380V 50Hz(please inform us your power in advance) |
| Suitable Material: | 140-350g/m2 |
| Total Power: | 4.8 KW |
| Weight: | 1980KG |
| Machine size | 2350-1250-1900 mm |
| Air pressure | 0.6Mpa, 0.6 m3/minute |
FAQ
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our
factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E,
etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q4: How about the warranty and after-sale service?
A: Our machines have two years warranty and lifetime technical
support. Help is always just one call or email, and then we can
provide a suitable solution within 8 hours after analyzing and
estimating the problem. Remote training and door-to-door service is
available.
