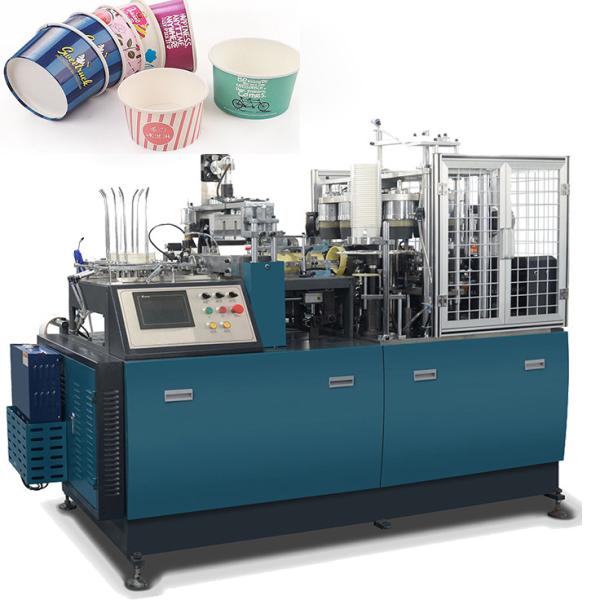

PLC Control Automatic ice Cream Soup Salad Paper Bowl Making Machine
PLC Control Automatic ice Cream Soup Salad Paper Bowl Making
Machine is a multi-station automatic forming machine which adopts
automatic paper feeding, sealing (bonding wall), oil filling,
bottoming, heating, knurling and crimping. Such continuous
processes as well as photoelectric detection, fault alarm, counting
and other functions are ideal equipment for producing
large-capacity calibers or food containers such as paper soup
bowls, instant noodle bowls, convenient noodle bowl, breakfast
bowl,and other paper food container bowls.
Technical parameters
Type | PF-BOWL |
Bowl size: | 8-35oz (other customized size) |
Max. paper bowl up diameter | 150 mm |
Max. Paper bowl bottom diameter | 125 mm |
Max. Paper Bowl height | 115 mm |
Production capacity | 60-70 pcs/min |
Power source: | 380V 50Hz(please inform us your power in advance) |
Suitable Material: | 140-350g/m2 |
Total Power: | 4.8 KW |
Weight: | 1980KG |
Machine size | 2350-1250-1900 mm |
Air pressure | 0.6Mpa, 0.6 m3/minute |
Details
Repeatedly loose paper
Three paper feeds and multiple mediations to avoid unevenness on
both sides of the paper cup

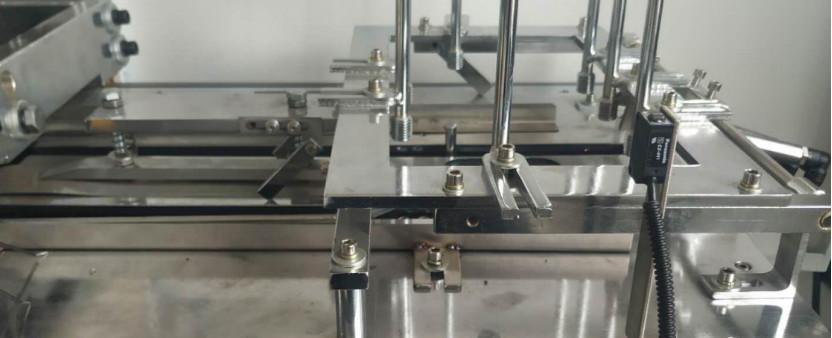

Photoelectric Sensor Detection
The encoder and the Photoelectric Sensor control the machine at the
same time, a fan-shaped plate with a cup bottom to avoid paper
waste. Failure alarm, automatic shutdown.
PLC control
The machine is more intelligent, the control is more precise, and
the labor is greatly reduced.
Bottom punching system
In the past, the complicated paper feeding process of the bottom
suction paper was prone to overturning. After improving the
equipment, the direct bottom punching method was used to avoid the
bottom turning in one step.

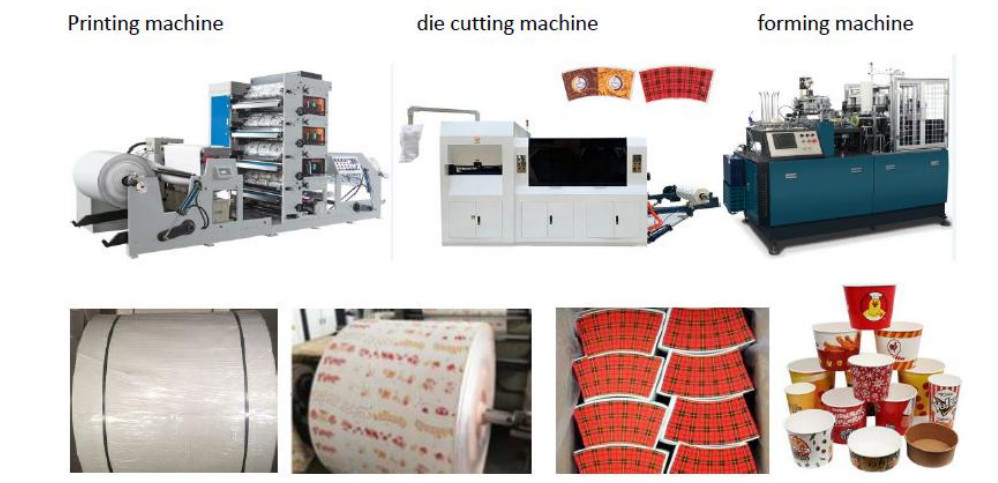

Production line of paper bowl:
About us
Zhengzhou Perfect Co., Ltd. specialize in producing paper cup machine, high cup machine, paper bowl machine, paper box machine, dining box machine and other paper packaging equipments. Our company integrates research and development, production, sales and maintenance, constantly introducing new and high technology, focusing on after-sales service.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry, food and other industries and are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
PACKAGE
Package details | 70 pcs/min Disposable aluminum foil food paper bowl making machine |
Package size | 2450 x 1350 x 2100 mm |
Gross Weight | 2500 kg |
FAQ
Q1: Are you a manufacturer or a trading company?
A: We have our own factory and export team, you are welcome to
visit our factory, we can take you to the airport
Q2:: Do you have a valid certificate?
A: Yes, so far we have CE, ISO, etc. we can also issue CO, Form E
etc. if you wish it.
Q3: Do you inspect finished machines?
A: Yes, we have QC department, they will inspect the whole machine
before packing, and provide testing video to make sure there are no
problems with the machines.
Q4: What payment terms are accepted?
A: TT (Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q5: When can the machine be shipped after ordering?
A Depending on the machine model and quantity, some stocking
machines can be shipped within 3 working days after payment is
cleared, some customized machines start producing after deposit
arrives, please contact our staff for details.
Q6: What about warranty and after-sales service?
A: Our machines come with a two-year warranty and technical
support. Help is always just a phone call or email away, then we
can provide the right solution within 8 hours after analyzing and
estimating the problem. Remote training and door-to-door service
are available.
![]() |
