The reason why you choice us:
1. multi-tasks: produce different sizes and purposes paper cups; apply for single
or double PE paper
2. Intelligent: automatic paper feeding; paper anit-withdrawal device; ultrasonic
welding; transferring paper fan; silicone oil lubricating bottom
punching; bottom folding; bottom pre-heating; bottom knurling.
3. Time-saving and labor-saving: more stable and more efficient.
4. muitipurpose: apply for hot and cold drinking paper cups just like coffee, tea,
ice-cream, juice, beer, soup, food, snack etc.
5. Warranty service and maintenance:One year warranty and lifelong technical service, Inspection
before delivery is available. The above clause is ONLY effective
under the machine is being properly used, any artificial misuse or
destroy purposely is not within the limit of Quality Guarantee.
6. Pre-sale and after-sale service: solve your any question request.
7. Benefits: to be negotiated.
♦ Advantage ♦
• inclined frame, cup dropping rate 99.99%
• mould plate, nylon wheel, chassis are all made by aluminum, it is
light, good anti turntable inertia with long life and more durable
than other iron machine
• Full automatic, Easy changing molds produce different sizes paper
cups
• Easy operating, save labor cost (one operator is enough)
• Cheap operating cost and low investment
PFD-9 automatic Double coated paper cup making machine is a multi
station automatic molding machine, it has automatic paper feeding,
cup wall sealing (ultrasonic sealing), cup bottom punch and insert
to cup wall, bottom pre-heating, main heating , bottom knurling,
top curling, discharging and collecting.
Built-in ultrasonic, save the external space of the machine, reduce
the size of the machine and reduce the area occupied by the machine

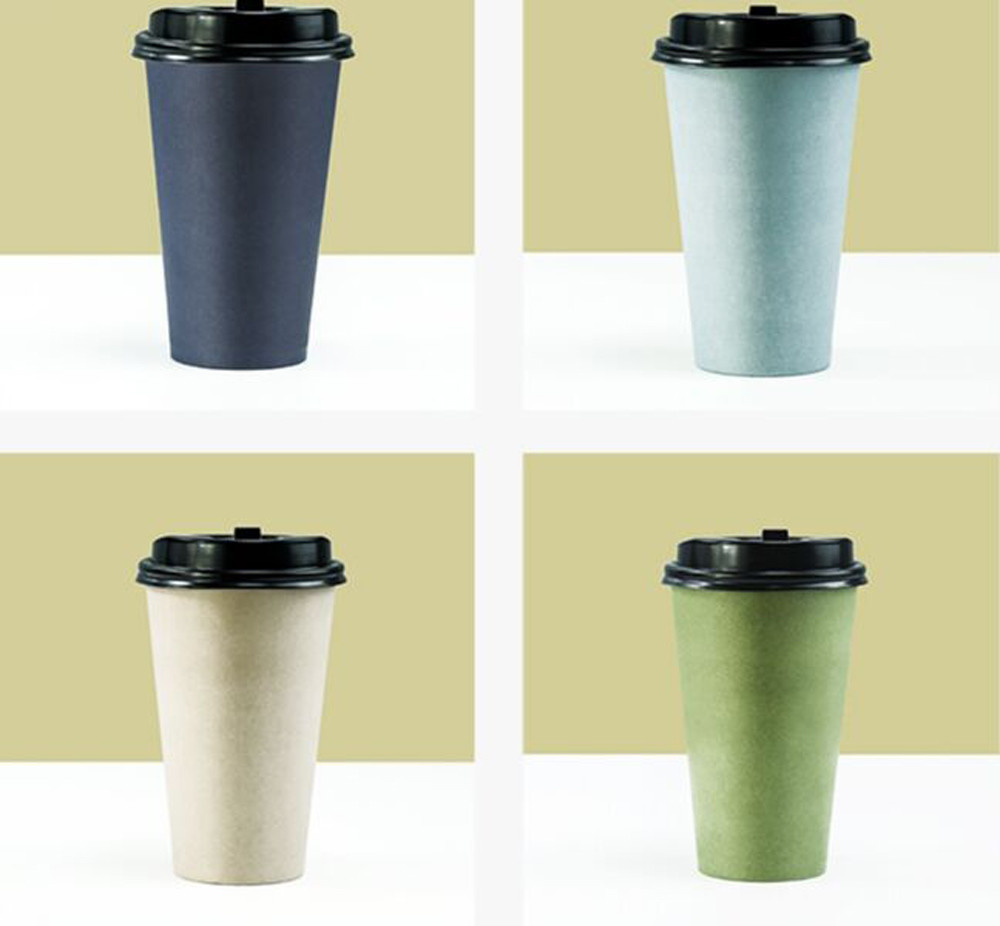

It is ideal equipment for making both hot drinking paper cups for
(coffee, tea, soup, food, snacks, etc).
♦Product Details ♦
Repeatedly loose paper
Three paper feeds and multiple mediations to avoid unevenness on
both sides of the paper cup
Photo eye detection
The encoder and Photo eye detection control machine at the same
time, one fan with one cup bottom to avoid paper waste. Failure
alarm, automatic shutdown
automatic oil lubrication
The machine automatically lubricates and lubricates each place that
needs lubrication through copper pipes, saving labor
Sheave drive
The inside of the machine is connected by groove wheels, and the
parts are more tightly connected. It is not easy to loosen during
the operation of the machine and the work is more accurate
Bottom punching system
In the past, the complicated paper feeding process of the bottom
suction paper was prone to overturning. This machine use direct
bottom punching method to avoid the bottom turning.
♦Technical Specification♦
| Type | PFD-9 |
| Cup size: | 40ml-16 oz (other customized size) |
| Production capacity | 65-85 pcs/min |
| Power source: | 380V/ 220V 50HZ(please inform us your power in advance) |
| Suitable Material: | 150-350g/m2 (Double-coated paper) |
| Air source | 0.4-0.6 Mpa |
| Total Power: | 6 KW |
| Weight: | 1680KG |
| Machine size | 2100 x 970 x 1500 mm |
| Package size: | 2200 x 1100 x 1900 mm (4.598CBM) |
♦Components brand♦
| Motor | Main motor | JINGGUANG(CHINA) |
| Knurling motor | SHANGHAI DEDONG(CHINA) |
| educer | HANTIAN(CHINA) |
| gear box | LI ZHONG(CHINA) |
| Electric elements | Frequency converter | EURO (CHINA) |
| All other electrical parts | CHNT(CHINA) |
Ultrasonic
| KEJIAN(CHINA) / Ever Green(TAIWAN.CHINA) |
| sensors | (CHINA) |
| Pneumatic | cylinder | MINGMAN SHAKO (TAIWAN) |
| Bearing | other bearings | (CHINA) |
