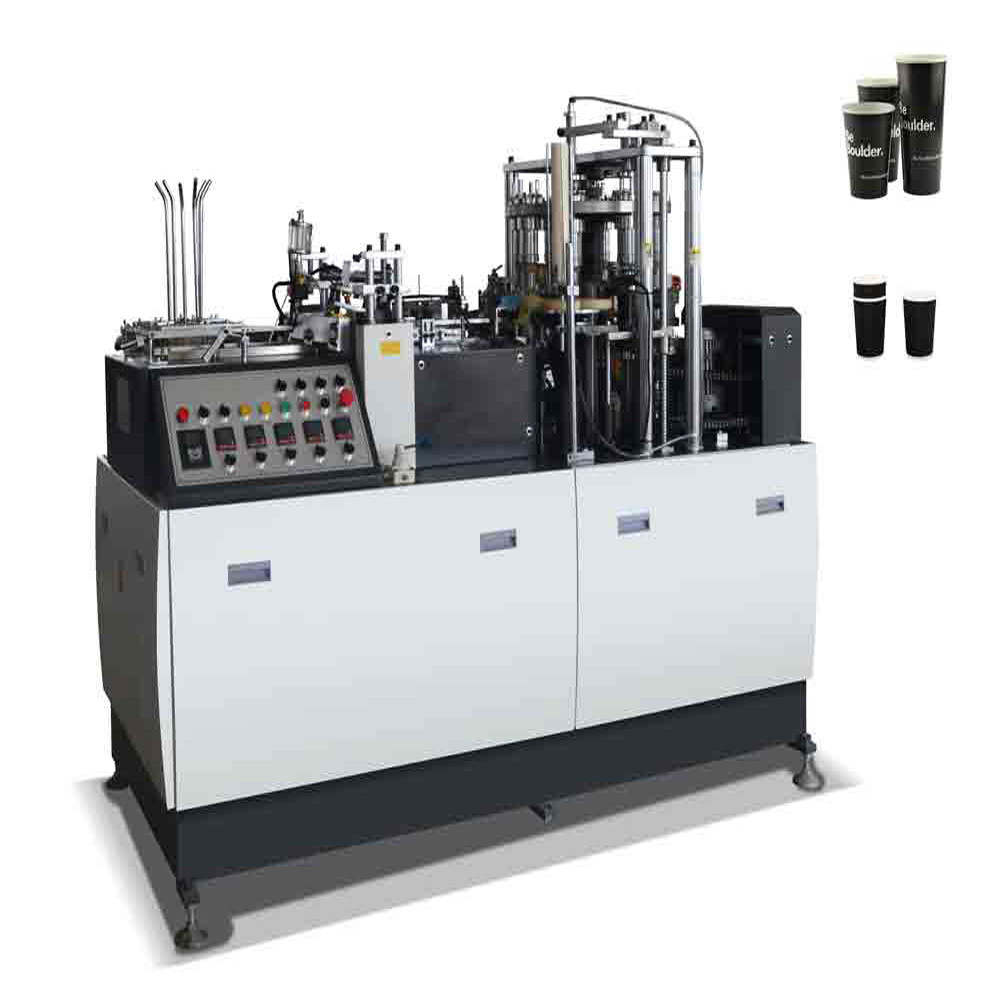

♦Product Details ♦
Repeatedly loose paper
Three paper feeds and multiple mediations to avoid unevenness on
both sides of the paper cup
Photo eye detection
The encoder and Photo eye detection control machine at the same
time, one fan with one cup bottom to avoid paper waste. Failure
alarm, automatic shutdown
automatic oil lubrication
The machine automatically lubricates and lubricates each place that
needs lubrication through copper pipes, saving labor
Sheave drive
The inside of the machine is connected by groove wheels, and the
parts are more tightly connected. It is not easy to loosen during
the operation of the machine and the work is more accurate
Bottom punching system
In the past, the complicated paper feeding process of the bottom
suction paper was prone to overturning. This machine use direct
bottom punching method to avoid the bottom turning.
♦ Advantage ♦
• inclined frame, cup dropping rate 99.99%
• mould plate, nylon wheel, chassis are all made by aluminum, it is
light, good anti turntable inertia with long life and more durable
than other iron machine
• Full automatic, Easy changing molds produce different sizes paper
cups
• Easy operating, save labor cost (one operator is enough)
• Cheap operating cost and low investment
♦Technical Specification♦
| Type | PFD-9 |

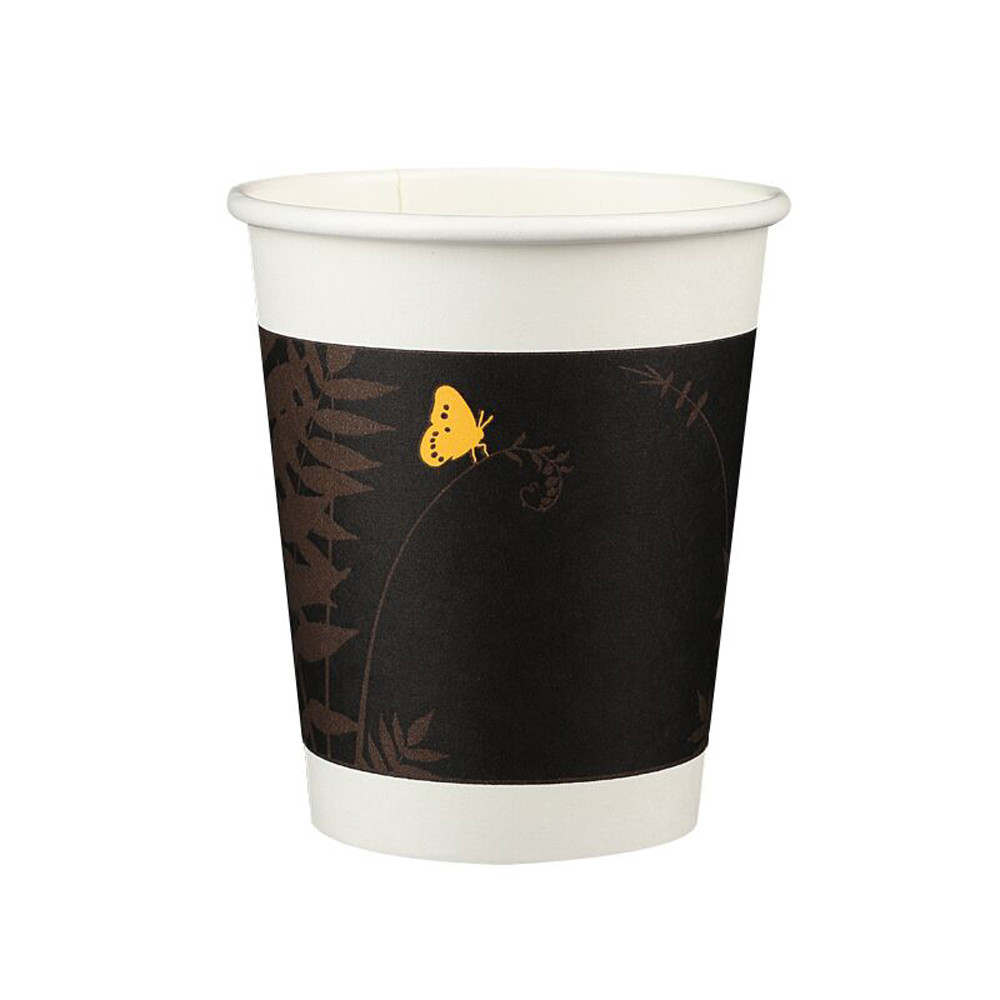

| Cup size: | 40ml-16 oz (other customized size) |
| Production capacity | 65-85 pcs/min |
| Power source: | 380V/ 220V 50HZ(please inform us your power in advance) |
| Suitable Material: | 150-350g/m2 (Double-coated paper) |
| Air source | 0.4-0.6 Mpa |
| Total Power: | 6 KW |
| Weight: | 1680KG |
| Machine size | 2100 x 970 x 1500 mm |
| Package size: | 2200 x 1100 x 1900 mm (4.598CBM) |
|
A: top diameter: Min 46mm---Max 110mm B: bottom diameter Min 35mm---Max 70mm C: total height Min 32mm---Max 132mm |
♦Components brand♦
| Motor | Main motor | JINGGUANG(CHINA) |
| Knurling motor | SHANGHAI DEDONG(CHINA) |
| educer | HANTIAN(CHINA) |
| gear box | LI ZHONG(CHINA) |
| Electric elements | Frequency converter | EURO (CHINA) |
| All other electrical parts | CHNT(CHINA) |
Ultrasonic
| KEJIAN(CHINA) / Ever Green(TAIWAN.CHINA) |
| sensors | (CHINA) |
| Pneumatic | cylinder | MINGMAN SHAKO (TAIWAN) |
| Bearing | other bearings | (CHINA) |
♦FAQ♦
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our
factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E,
etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
