85pcs/ min Production capacity Autoamtic Paper Baking Cups tea
Paper Cup Machine

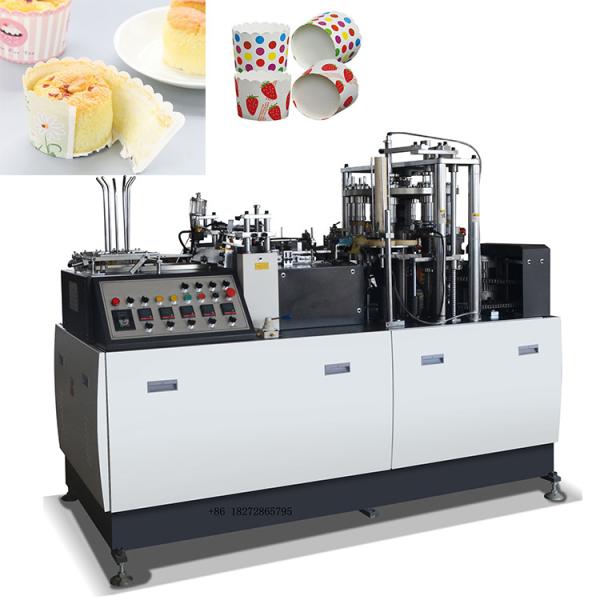

85pcs/ min Production capacity Autoamtic Paper Baking Cups tea
Paper Cup Machine for baking ice cream waffle cups, it has automatic paper feeding,
cup wall sealing (ultrasonic sealing), cup bottom punch and insert
to cup wall, bottom pre-heating, main heating , bottom knurling,
top curling, discharging and collecting.
Built-in ultrasonic, save the external space of the machine, reduce
the size of the machine and reduce the area occupied by the machine
It is ideal equipment for making both hot drinking paper cups for
(coffee, tea, soup, food, snacks, etc).
Technical Parameters
| Type | PFD-9 |
| Cup size: | 40ml-16 oz (other customized size) |
| Production capacity | 65-85 pcs/min |
| Power source: | 380V/ 220V 50HZ(please inform us your power in advance) |
| Suitable Material: | 150-350g/m2 (Double-coated paper) |
| Air source | 0.4-0.6 Mpa |
| Total Power: | 6 KW |
| Weight: | 1680KG |
| Machine size | 2100 x 970 x 1500 mm |
| Package size: | 2200 x 1100 x 1900 mm (4.598CBM) |
 |
A: top diameter: Min 46mm---Max 110mm B: bottom diameter Min 35mm---Max 70mm C: total height Min 32mm---Max 132mm |
Advantages
1.Light Eye Detection
The encoder and the light eye control the machine at the same time,
a fan-shaped plate with a cup bottom to avoid waste. Failure alarm,
automatic shutdown.
2.Sheave drive
The inside of the machine is connected by groove wheels, and the
parts are more tightly connected. It is not easy to loosen during
the operation of the machine and the work is more accurate
3.Bottom punching system
In the past, the complicated paper feeding process of the bottom
suction paper was prone to overturning. After improving the
equipment, the direct bottom punching method was used to avoid the
bottom turning in one step.
After Sale Service
1) 1 year warranty service.
2) Free replacement of parts within 1 year (free shipping).
3) Parts are provided free of charge within 2 years, but no free
shipping.
4) We provide Operation & Maintenance CD.
5) When there is a problem with the machine, please take a video of
the problem and send it to us.
6) We will arrange professionals to help you deal with it through
video or document tutorials.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory and have export team, welcome to visit our
factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, we have CE, ISO, etc. we also can issue CO, Form E, etc if
you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q5.How does your factory do regarding quality control?
A:Quality is priority. Our Factory always attach great importance
to quality controlling from the very beginning to the very end:
1).Skilful workers care every details in handling the producing and
packing processes;
2).Quality Control Department specially responsible for quality
checking in each process.
