Cardboard party mini disposable baking paper cup making machine for
baking ice cream waffle cups

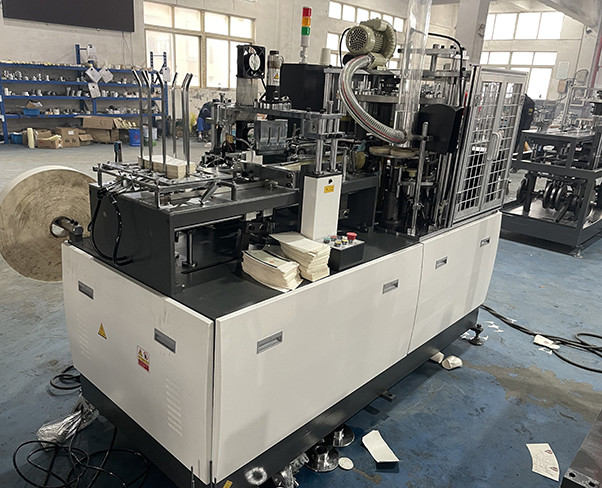

PFD-9 Cardboard party mini disposable baking paper cup making machine
for baking ice cream waffle cups, it has automatic paper feeding, cup wall sealing (ultrasonic
sealing), cup bottom punch and insert to cup wall, bottom
pre-heating, main heating , bottom knurling, top curling,
discharging and collecting.
Built-in ultrasonic, save the external space of the machine, reduce
the size of the machine and reduce the area occupied by the machine
It is ideal equipment for making both hot drinking paper cups for
(coffee, tea, soup, food, snacks, etc).
Technical Parameters
| Type | PFD-9 |
| Cup size: | 40ml-16 oz (other customized size) |
| Production capacity | 65-85 pcs/min |
| Power source: | 380V/ 220V 50HZ(please inform us your power in advance) |
| Suitable Material: | 150-350g/m2 (Double-coated paper) |
| Air source | 0.4-0.6 Mpa |
| Total Power: | 6 KW |
| Weight: | 1680KG |
| Machine size | 2100 x 970 x 1500 mm |
| Package size: | 2200 x 1100 x 1900 mm (4.598CBM) |
 |
A: top diameter: Min 46mm---Max 110mm B: bottom diameter Min 35mm---Max 70mm C: total height Min 32mm---Max 132mm |
Advantages
1.Light Eye Detection
The encoder and the light eye control the machine at the same time,
a fan-shaped plate with a cup bottom to avoid waste. Failure alarm,
automatic shutdown.
2.Sheave drive
The inside of the machine is connected by groove wheels, and the
parts are more tightly connected. It is not easy to loosen during
the operation of the machine and the work is more accurate
3.Bottom punching system
In the past, the complicated paper feeding process of the bottom
suction paper was prone to overturning. After improving the
equipment, the direct bottom punching method was used to avoid the
bottom turning in one step.
Company Information
Zhengzhou Perfect Co., Ltd. specialize in producing paper cup
machine, high cup machine, paper bowl machine, paper box machine,
dining box machine and other paper packaging equipments. Our
company integrates research and development, production, sales and
maintenance, constantly introducing new and high technology,
focusing on after-sales service.
With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in industry, food and
other industries and are widely recognized and trusted by users and
can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact
us for future business relationships and mutual success!
FAQ
Q1: Delivery of Automatic Disposable Pe Coated Coffee Paper Cup
Machine?
A: Within 35 working days after payment confirmed.
Q2 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q3: Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E,
etc if you need.
Q4: How about the warranty and after-sale service?
A: Our machines have two years warranty and lifetime technical
support. Help is always just one call or email, and then we can
provide a suitable solution within 8 hours after analyzing and
estimating the problem.
