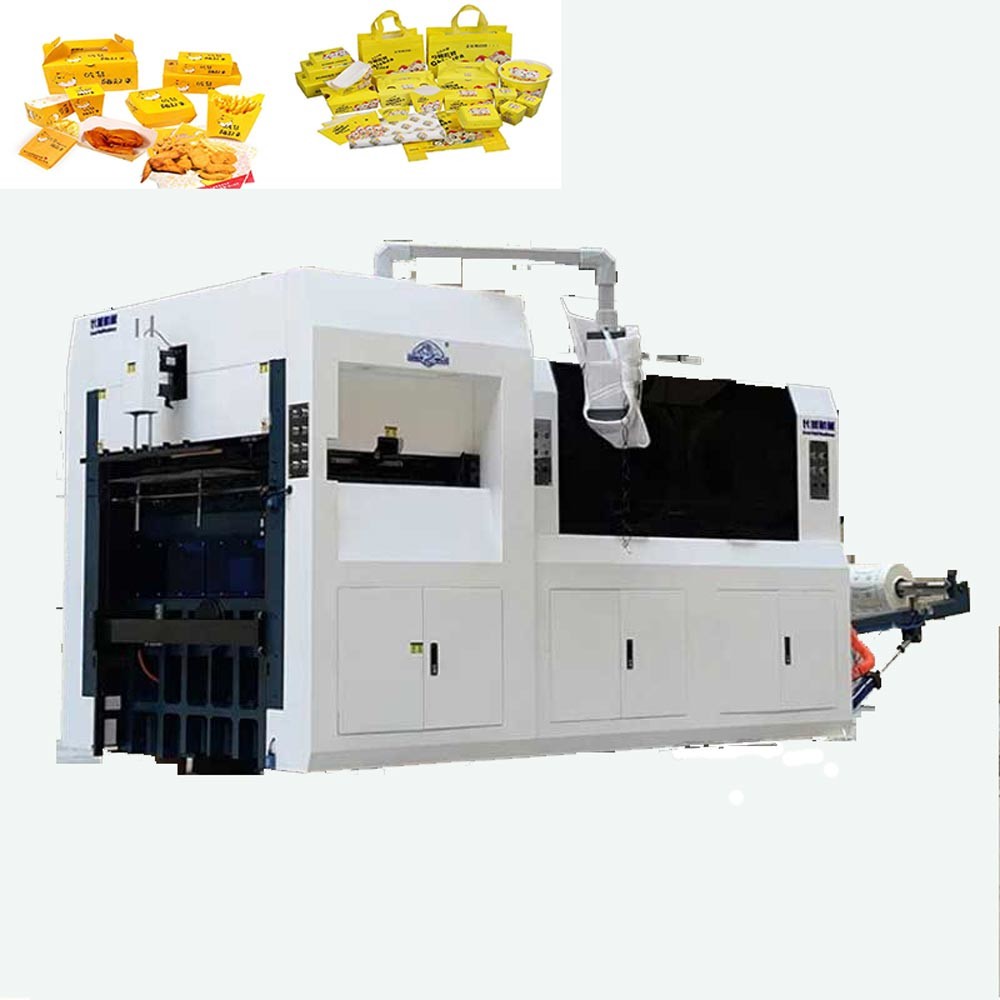

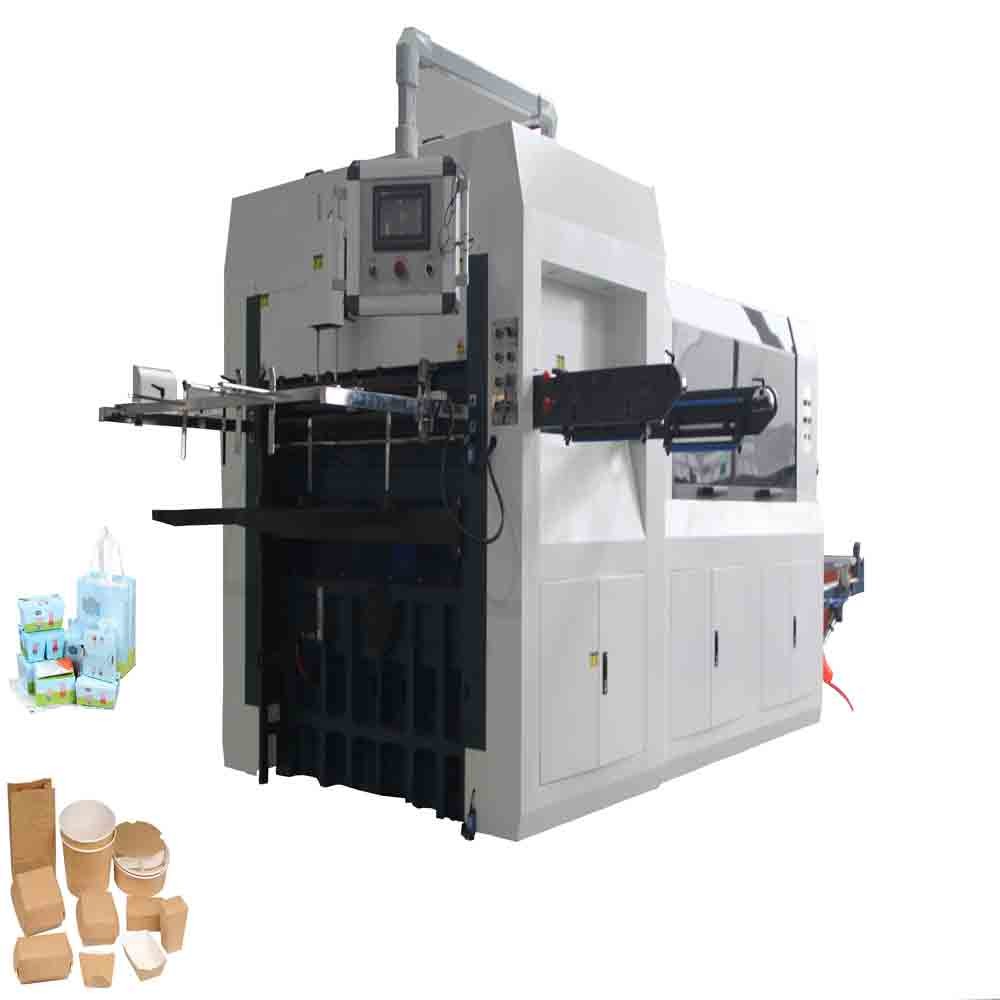

MQ970 200 times/min Cake Carton Lunch Box Die Cutting Machine for
Paper box
Feature:
1. Unwind air shaft controlled by pneuamtic brake, hydraulic
loading
2. Servo motor control EPC device
3. Paper moving forward controlldy by servo motor
4. It can automatically fold and flatten paper which is near paper
core and adjust different paper folding angle
5. Photoelectric eye trace paper to ensure synchronization of paper
feeding speed and die cutting speed
6. Pneumatic locking system to make sure cutter not fall down
7. Die cutting cutter plate and cutter frame can be taken out
simultaneously to save plate-changing time
8. When paper is in jam, it will alarm and machine stop
automatically
9. Finished paper will pile up automatically, lower down
automatically to keep piling height unchanged
10. The whole machine is controlled by PLC and touch screen which
is convenient, we can set paper tension, paper feeding length,
paper counting and automatic stop
Specification:
| Model | MQ970 |
| Max speed | 200 times/min |
| Die cutting precision | ±0.1mm |
| Paper thickness | 80-2000g |
| Max. Die cutting pressure | 320T |
| Max. Die cutting size | 1120*640mm(W*L) |
| Min. Die cutting size | 400*350mm(W*L) |
| Max unwind paper roll diameter | 1600mm |
| Power | 16kw 380V 3P |
| Dimensions | 2500*1450*3300(mm) |
| Machine weight | 3500kg |
Application:

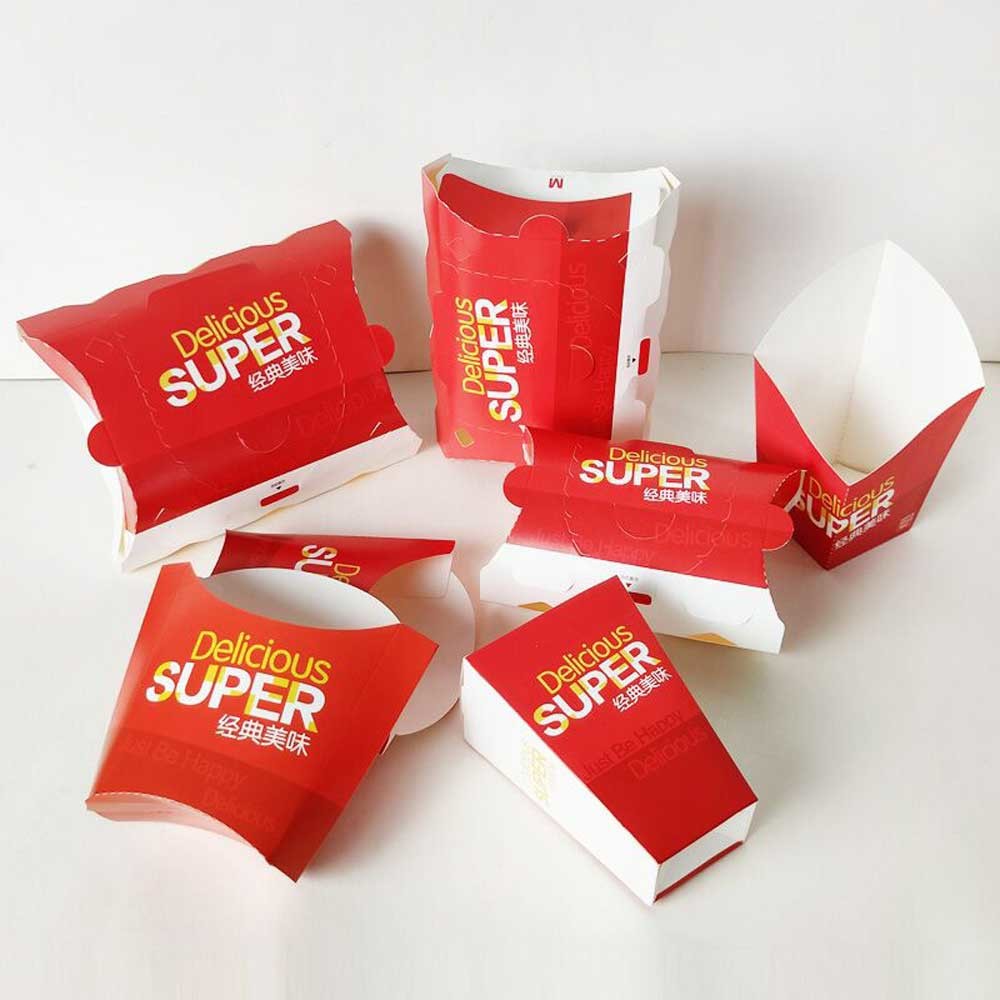

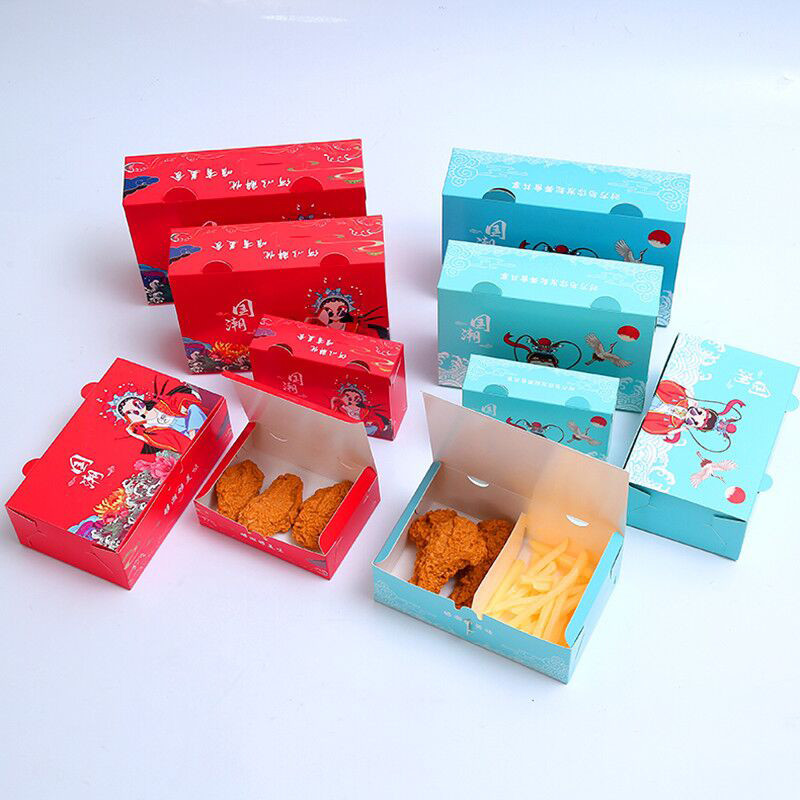

This die cutting machine used to die cut pe coated paper, normal
paper, corrugating paper and plasitc material, it applied to paper
cup, paper box, medical package, wine package, food packages etc.
| package detail | Wooden case/Good price automatic hamburger cake small paper carton
lunch box die cutting machine for paper box |
| Package size | 4.8*3*2.6m(L*W*H) (L*W*H)mm |
| Gross weight | 8T |
About Us
High-Quality
We elaborate every product to provide customers with the best
service.
Rich Experience
We have rich experience to provide customers with the best products
and services.
Professional Team
We have a professional team which can well feed customers to solver
problems and provide better services.
Quality Guarantee: One year warranty and lifelong technical service, the seller
guarantee the
machines are 100% new. The above clause is ONLY effective under the
machine is being
properly used, any artificial misuse or destroy purposely is not
within the limit of Quality
Guarantee.
FAQ
Q1 : When can the machine be shipped after order is placed?
A: It depends on machine model and quantity, some stock machines
can be shipped within 3 working days after payment, other
customized machines start production after deposit arrived, please
contact our staff for detail info.
Q2: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our
factory, we can pick you up at the airport.
Q3 : Do you inspect the finished machines?
A: Sure, we test every machine before packing and provide test
video.
Q4 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q5: How about the warranty and after-sale service?
A: Our machines have two years warranty and lifetime technical
support. Help is always just one call or email, and then we can
provide a suitable solution within 8 hours after analyzing and
estimating the problem. Remote training and door-to-door service is
available.
Q6 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E,
etc if you need.
Installation and Debugging: we can send technician for installation and training at the cost
of buyer (visa, round tickets, eating, accommodation in his country
and salary 80 USD /day.
