    Noodle Kraft Aluminum Foil Container Making Machine 4.8KW

    Ask Lasest Price
    Brand Name : FECT
    Model Number : PF-W35
    Certification : CE
    Price : USD$ 16,350/ set
    Payment Terms : 30% T/T as deposit in advance, the balance by T/T after production
    Supply Ability : 35 sets per month noodle aluminum foil container kraft paper soup bowl making machine
    Delivery Time : 3)Within 35 days after deposit received
    • Product Details
    • Company Profile

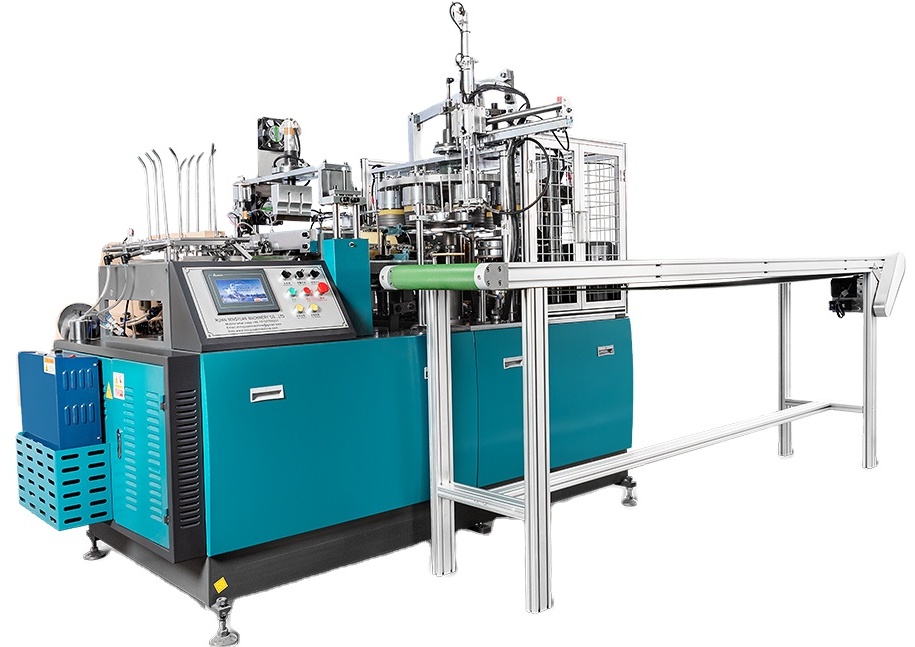

    Noodle Kraft Aluminum Foil Container Making Machine 4.8KW

    Introduction of noodle aluminum foil container kraft paper soup bowl making machine

    It makes paper bowls after running a whole procedure of automatic pre-printed bowl-fan-paper feeding, bowl-side-body welding(heater or ultrasonic), silicone-oil lubricating(for top curling, Dimethyl silicone oil 201, Food Grade), roll bottom auto feeding and bottom-disk punching, bottom pre-heating and pre-folding, main heating, bottom knurling, top curling, bowl discharging, collection.


    ♦Technical Specification ♦ of noodle aluminum foil container kraft paper soup bowl making machine


    TypePF-W35
    Bowl size:8-35oz (other customized size)
    Max. paper bowl up diameter150 mm
    Max. Paper bowl bottom diameter125 mm
    Max. Paper Bowl height115 mm
    Production capacity60-70 pcs/min
    Power source:380V 50Hz(please inform us your power in advance)
    Suitable Material:140-350g/m2
    Total Power:4.8 KW
    Weight:1980KG
    Machine size2350-1250-1900 mm
    Air pressure0.6Mpa, 0.6 m3/minute

    ♦Details ♦ of noodle aluminum foil container kraft paper soup bowl making machine


    PLC touch screen, easy operation


    This paper bowl-making machine adopts a full-body square steel structure, which is not more compact and stable under the condition of high-speed operation.

    The spray lubrication system is used to reduce wear and dissipate heat effectively so that the machine has a longer life and more stable operation.


    fully automatic closed lubrication system, without the need for manual oil lubrication, can ensure that the machine runs for a long time without interruption at high speed.


    Parts and components are produced in a standardized manner with strong versatility and good interdependence performance, which is convenient for equipment maintenance.

    Mechanical quality assurance ♦ of noodle aluminum foil container kraft paper soup bowl making machine

    1. All moving parts on the table are easily accessible, which is convenient for daily cleaning and maintenance.

    2. All the moving parts under the countertop are shower-type lubricated and replaced with the specified lubricating oil every 4 to 6 months.
