    380V/220V 65-85 pcs/min PFD-16 High Speed Fully Automatic Paper Cup Making Machine

    Ask Lasest Price
    Brand Name : FECT
    Model Number : PFD-16
    Certification : CE
    Price : USD$ 13,980/ set (include one set mold)
    Payment Terms : 30% T/T as deposit in advance, the balance by T/T after production
    Supply Ability : 35 sets per month High Speed Fully Automatic Paper Cup Forming Machine
    Delivery Time : Within 30 working days after deposit received and cup drawing confirmed
    • Product Details
    • Company Profile

    380V/220V 65-85 pcs/min PFD-16 High Speed Fully Automatic Paper Cup Making Machine

    When you purchase machines, high-quality products, good service and favorable price should be your consideration. Most importantly, a reliable supplier will help you solve it, so chose us.

    Advantages

    1. Three times paper feeding.

    In three times feeding process, Paper can be well adjusted, avoiding the irregularity during folding paper fan.


    2. Photoelectric Sensor Detection

    The encoder and the Photoelectric Sensor work together to control the machine , one paper fan match one bottom avoiding paper waste. Failure alarm, automatic shutdown.


    3. PLC control

    Intelligent, accurate, easier operation and labor-saving


    4. Multiple cooling fans for heat dissipation

    Multiple cooling fans are installed for increasing heat dissipation and speed up cooling, ensuring that the machine could keep suitable temperature .


    5. Automatic oil lubrication syste

    The machine automatically lubricates every part that needs to be lubricated through the copper pipe. There is no need for worker to spray oil manually which greatly saves labor.


    6. Waste paper conveying.

    Waste paper discharged by tubes. When the machine working, avoid the waste paper enter the machine inside, which is hard to clean, affect machine running.


    7. Sheave drive

    The inside of the machine is connected by groove wheels, and the parts are more tightly connected. It is not easy to loosen during the operation of the machine and the work is more accurate.


    8. Bottom punching system

    When give the bottom paper, sometimes the bottom paper will be turned over, cannot match the paper fan well, this machine shorten the process, give bottom directly, avoid the problem.


    9. Quality ultrasonic and electrical configuration

    Built-in ultrasonic, save the external space of the machine, reduce the size of the whole machine, and reduce the area occupied by the machine.


    Characteristics

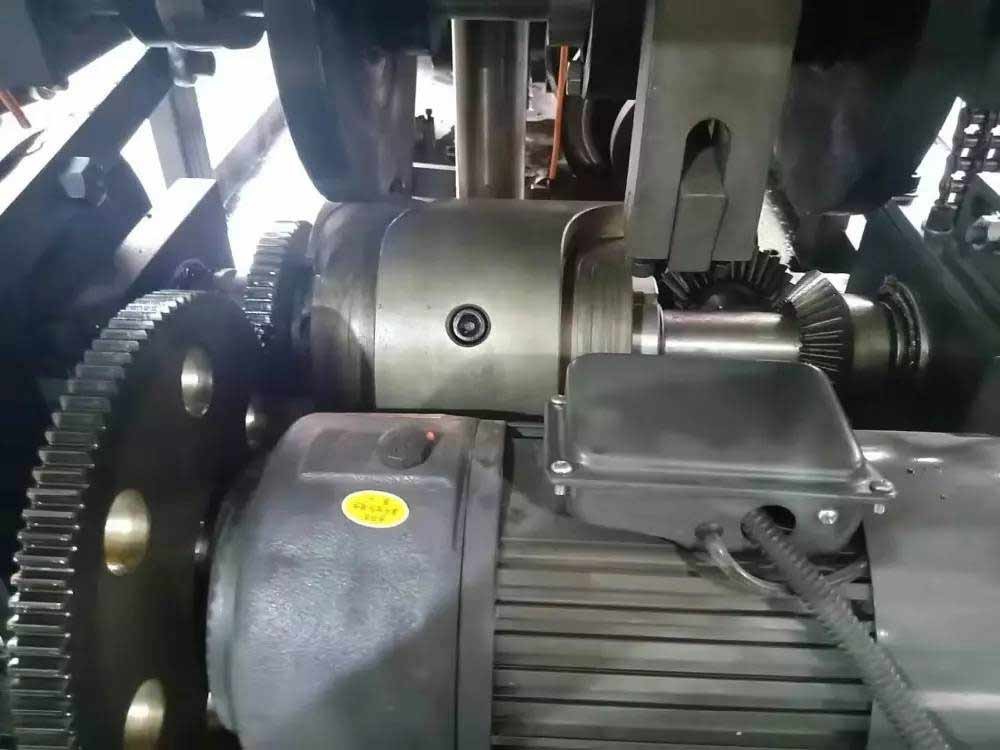

    Gear Transmission: More Stable

    Open Cam: More Convenient

    Bottom Paper Direct-Punch: Avoid Leaking

    Automatically Oiling Lubrication: Prolong Products' Lifetime


    Seven reasons why you choice us:


    1. multi-tasks


    2. Intelligent


    3. Time-saving and labor-saving


    4. muitipurpose


    5. Warranty service and maintenance


    6. Pre-sale and after-sale service


    7. Benefits


    Quick Details


    TypePFD-16
    Cup size4-16 oz (other customized sizem Mould changeable)
    Production capacity65-85 pcs/min
    Power source3P 220V/380V 50HZ(please inform us your power in advance)
    Suitable Material150-350g/m2(Single or Double PE-coated / laminated paper)
    Total Power4 KW
    Air Requirement0.4-0.5 m3/min
    Machine Size2000 x 1230 x 1700 mm
    H.S code for customs8441309000
    Quality GuaranteeOne year warranty and lifelong technical service, Inspection before delivery is available. The above clause is ONLY effective under the machine is being properly used, any artificial misuse or destroy purposely is not within the limit of Quality Guarantee.
    Installation and Debuggingwe can send technician for installation and training at the cost of buyer (visa, round tickets, eating, accommodation in his country and salary 100 US dollars /day

    Configuration


    ItemBrand
    PLCDelta
    Touch ScreenDelta
    ConverterDelta
    Servo MotorXinjie
    Servo DriverXinjie
    RelaySchneider
    Air switchLG
    Power SourceDelta
    ContactorSchneider
    Thermo relySchneider
    Solid state relayYudian
    Temperature ControlDelta
    Photoelectric SensorPanasonic
    Cylinder photoelectricAoyi
    Cylinder proximity switchAoyi
    Ultrasonic DeviceKEJIAN
    ButtonSchneider

    If you have any question, you can consult us. We will help you solve it.

    If you prepare to place a big order, We will give you a favorite price.
